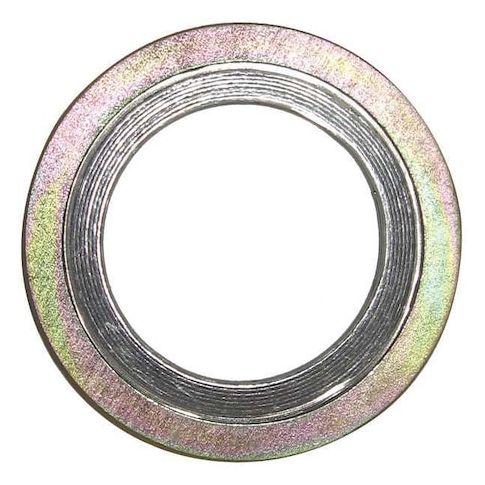

Spiral Wound Metal Gasket, 1 in., 11/64 in MPN:304-346-0100
Spiral Wound Metal Gasket, 1 in., 11/64 in
Protect your most critical systems with the Spiral Wound Metal Gasket, designed for use on ANSI Class 300, 400, and 600 flanges. Constructed with a stainless steel spiral winding and carbon steel outer ring, this gasket provides exceptional durability and resistance to extreme temperatures, from -320°F to 842°F. The graphite filler material ensures a tight seal, while the yellow outer rim and gray rim stripe provide easy identification. Ideal for use in high-pressure applications, such as oil and gas, chemical processing, and power generation, this gasket is a reliable choice for ensuring the integrity of your most critical systems.
Top product features:
- Spiral wound construction provides a flexible seal around the pipe flange.
- The gasket is designed for use on ANSI Class 300, 400, and 600 flanges.
- The graphite filler material allows for a compressible seal in a variety of temperatures.
Top product applications:
- Steam Traps
- High-Temperature Pumps
- High-Pressure Valves
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 1 in, Inside Diameter 1 1/4 in, Outside Diameter 2 7/8 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Yellow, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -320 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Material None
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 2.90
- Package Height: 0.20
- Package Weight: 0.18
Product info last updated on February 3, 2026 10:32am UTC
Category: Sealing and Gasketing
