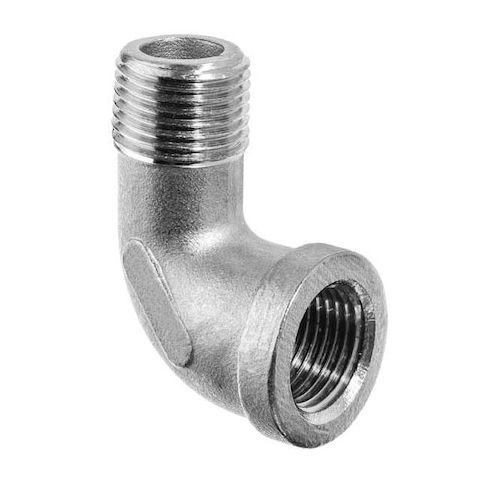

SS, 90Elbow, 1/2"BSPTx1/2"BSPT MPN:ZUSA-PF-8324

The ZORO SELECT ZUSA-PF-8324 is a stainless steel pipe fitting rated for ASME/ANSI Class 150 pressure–temperature rating. It provides connections constructed from 316 stainless steel suitable for systems with operating pressure up to 150 psi for water, steam, chemical, food, or HVAC lines. Crafted from 316 stainless steel, it provides 316 stainless steel construction suitable for 1/2 in BSPT threaded connections in Class 150 piping systems.

Key Features:

• - Material: 316 Stainless Steel
• - Application: Water, Steam, Chemical, Food, HVAC systems
• - Class: 150 pressure rating
• - Connection type: Threaded (BSPT)
• - Fitting Gender: Male on Side A, Female on Side B
• - Nominal Pipe Size: 1/2 in on both sides
• - Pipe Threading: 14 threads-per-inch on both sides
• - Includes Pre-Applied Thread Sealant: No
• - Includes Seal: No
• - Standards: ISO 7-1
• - Low Lead Compliance Level: Compliant
• - Max. Steam Pressure: 150 psi
• - Max. Operating Pressure: 150 psi
