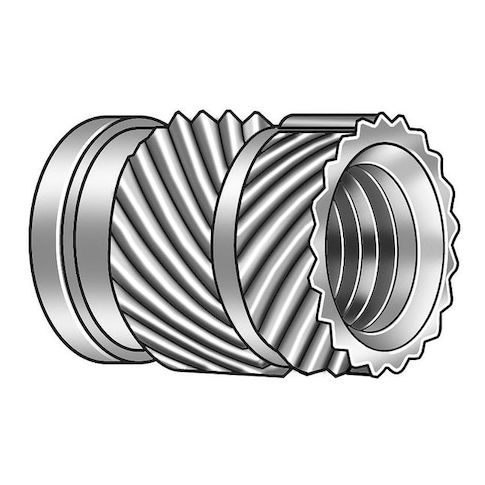

Ultrasonic Insert, 5/16"-18, 1/2 in L, 0.403 in Insert Dia., 0.374 in Tapered End Dia., Brass MPN:HI-518-WH-PK500
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7913875
Ultrasonic Insert, 5/16"-18, 1/2 in L, 0.403 in Insert Dia., 0.374 in Tapered End Dia., Brass
Elevate your manufacturing process with the GoVets Select Ultrasonic Insert, a reliable and efficient solution for assembling thermoplastic components. This brass insert features a 5/16in-18 thread size and a straight shank with a tapered end, ensuring a secure fit in a variety of applications. The insert's heat-set design provides pull-out resistance, reducing the risk of component failure. Ideal for use in industries such as automotive, aerospace, and consumer goods, this insert is perfect for applications where high precision and reliability are crucial, including assembly of dashboard components, electrical connectors, and other thermoplastic parts.
Top product features:
- Pull-Out Resistance
- Tapered End Diameter for secure fit
- Flush Flange Style for easy installation
Top product applications:
- Thermoplastic pipe and fittings assembly
- Automotive dashboard trim
- Medical device assembly
Heat-Set Insert, Insert Type Heat-Set Insert, System of Measurement Inch, Insert Diameter 13/32 in, Overall Length 1/2 in, Thread Size 5/16 In.-18, Thread Direction Right Hand, Thread Type Coarse, Material Brass, Shank Type Straight, Tapered End Diameter 0.378 in, Flange Style Flush, Number of Vanes Not Applicable, Compatible Material Thermoplastic, Drill Bit Size 9.60 mm, Minimum Material Thickness 11/64 in, Maximum Hole Diameter 0.378 in, Features Pull-Out Resistance, Finish Plain
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 8.30
- Package Width: 5.50
- Package Height: 1.50
- Package Weight: 3.50
Product info last updated on February 23, 2026 4:23pm UTC
Category: Threaded Inserts
