Flange Gasket, Ring, 1-1/4" Pipe MPN:BULK-FG-939
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7386548

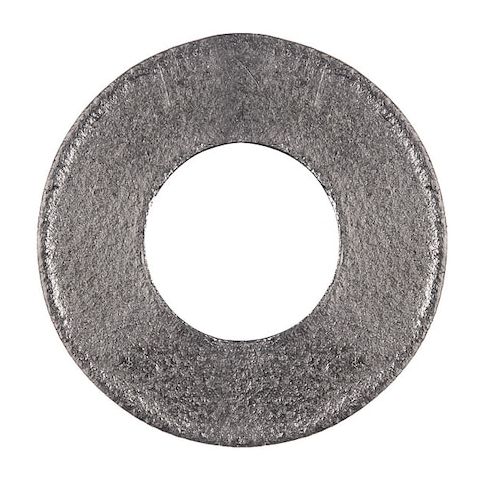

Flange Gasket, Ring, 1-1/4" Pipe
This 1-1/4 inch flange gasket is designed for use with ANSI Class 300 flanges in high-temperature applications. Made with graphite gasket material and 316 stainless steel inserts, it provides excellent sealing performance and resistance to corrosion. With a temperature range of -400°F to 975°F, it is suitable for use in industrial settings, such as chemical processing, power generation, and oil and gas production. Its compact size and durable construction make it an ideal choice for applications where space is limited and reliability is critical. It is also made in the US, ensuring high quality and consistency.
Top product features:
- The gasket is made with graphite material for high-temperature applications.
- The insert is made of 316 stainless steel for strength and durability.
- The gasket can operate at temperatures as low as -400 degrees F and as high as 975 degrees F.
Top product applications:
- High-Pressure Pipe Systems
- High-Temperature Pipe Applications
- Industrial Pipe Fittings and Connections
Ring Flange Gasket, Gasket Material Graphite, Insert Material 316 Stainless Steel, For Pipe Size 1 1/4 in, For Flange ANSI Class 300, Binder Material None, Color Gray, Inside Diameter 1 21/32 in, Minimum Operating Temperature -400 Degrees F, Maximum Operating Temperature 975 Degrees F, Outside Diameter 3 1/4 in, Thickness 1/8 in, Gasket Type Ring Gasket, Metal Detectable Gasket No, Included Fasteners Not Applicable, Hardness Not Rated, Includes Mounting Hardware No, X-Ray Detectable No
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 3
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.30
- Package Height: 0.20
- Package Weight: 0.10
Product info last updated on January 31, 2026 7:03am UTC
Category: Sealing and Gasketing
