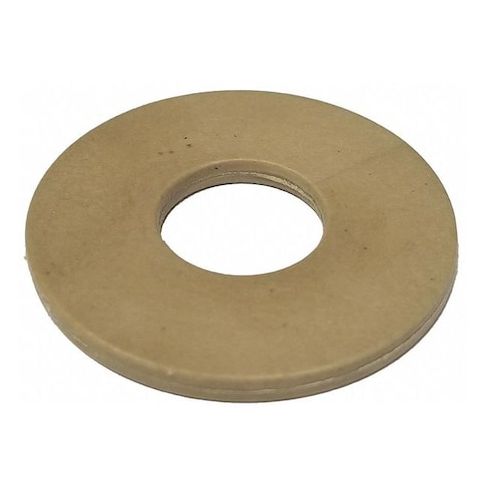

Flat Washer, For Screw Size M10, PEEK Plain Finish, 10 PK MPN:PKM10-WHS-01
Flat Washer, For Screw Size M10, PEEK Plain Finish, 10 PK
This M10 PEEK flat washer is designed for use with screws in high-temperature applications, with a maximum operating temperature of 500°F and a minimum temperature of -50°F. The PEEK material provides excellent chemical resistance and dimensional stability, making it ideal for use in harsh environments. The flat washer's plain finish and standard dimensions ensure a secure fit with M10 screws. Suitable for use in industries such as aerospace, automotive, and industrial manufacturing, this product offers a reliable solution for applications requiring high temperature resistance and chemical durability. Its compact size and lightweight design make it easy to integrate into various systems.
Top product features:
- Flat washer provides a plain finish to prevent corrosion and ensure smooth screw rotation.
- PEEK material provides high-temperature resistance up to 500 Degrees F.
- Standard flat washer design meets ANSI B18.22.1 dimensional standards for secure and reliable screw connections.
Top product applications:
- Machine building for high-temperature applications
- Automotive parts manufacturing for engine components
- Medical device components requiring high chemical resistance
Flat Washer, Flat Washer Type Standard, Dimensional Standards ANSI B18.22.1, Material PEEK, Material Grade/Class Not Applicable, Finish Plain, For Screw Size M10, Inside Diameter 10.5 mm, Outside Diameter 21 mm, Maximum Thickness 2 mm, System of Measurement Metric, Minimum Thickness 2 mm, Color Brown, Maximum Temperature 500 Degrees F, Minimum Temperature -50 Degrees F, Pack Size Small Pack, Rockwell Hardness D87.5, Thickness Tolerance +/-0.5mm, Package Quantity 10
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 40 days
- Minimum Order Quantity: 3
- Unit of Measure: PK
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 1.00
Product info last updated on March 26, 2026 2:26pm UTC
Category: Washers
