One-Hole Compression Lug, 300 kcmil Max, 3/8 in Stud, Long Barrel, Copper, White MPN:24D008
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5206607

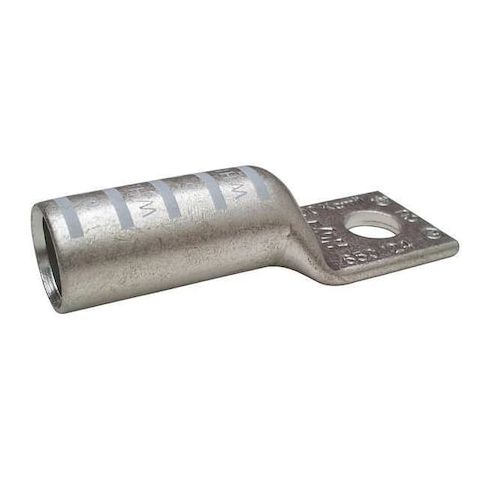

One-Hole Compression Lug, 300 kcmil Max, 3/8 in Stud, Long Barrel, Copper, White
The GoVets Select One-Hole Compression Lug is a high-quality, long-barrel compression lug designed for use with copper conductors up to 300 kcmil. Its seamless construction and crimp termination ensure a secure and reliable connection, making it ideal for a variety of applications including electrical distribution systems, industrial power systems, and commercial construction projects. With a maximum operating temperature of 257°F and a maximum voltage rating of 35 kV, this lug is built to withstand the demands of heavy-duty use. Its compact size and easy installation make it a convenient choice for a range of electrical applications.
Top product features:
- Seamless construction for added durability
- Crimping termination style for secure connection
- Maximum operating temperature of 257 Degrees F for high-temperature applications
Top product applications:
- Electrical Panel Assembly
- Industrial Power Distribution Systems
- Commercial Building Wiring
Compression Lug, Barrel Size Long, Color Code White, Die Code 66, Tongue Angle Straight, Tongue Width 1.19 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 300 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.92
- Package Width: 2.95
- Package Height: 0.98
- Package Weight: 0.20
Product info last updated on February 3, 2026 5:50am UTC
Category: Electrical Connectors
