One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Long Barrel, Copper, Brown MPN:24C994
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5206467

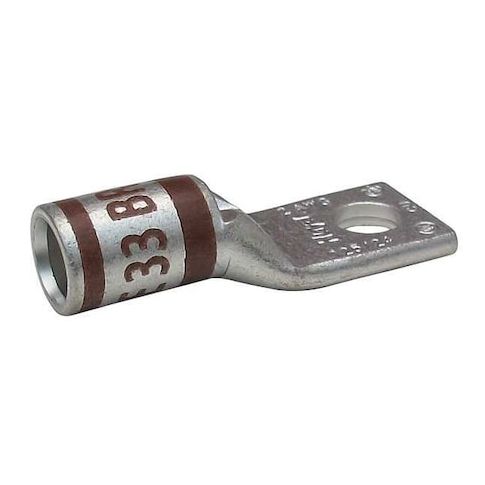

One-Hole Compression Lug, 2 AWG Max, 1/4 in Stud, Long Barrel, Copper, Brown
The GoVets Select One-Hole Compression Lug is a reliable and efficient connector for copper wiring applications. Designed for use with stranded copper wire up to 2 AWG, this lug features a long barrel and seamless construction for secure crimping. With a maximum operating temperature of 300°F and a voltage rating of 600V AC, it's suitable for a variety of electrical connections. The lug's straight tongue and inspection hole make installation and verification easy. Ideal for use in industrial settings, the GoVets Select One-Hole Compression Lug is a cost-effective solution for applications requiring a high level of electrical integrity.
Top product features:
- One-Hole Lug Compression Connector has a long barrel design for easy wire installation.
- The connector is designed for crimp termination, providing a secure and reliable connection.
- The lug is made of copper, allowing for high conductivity and efficient heat dissipation.
Top product applications:
- Automotive wiring harness
- Marine electrical systems
- Industrial control panel wiring
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Brown, Die Code 33, Tongue Angle Straight, Tongue Width 0.61 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.95
- Package Width: 2.36
- Package Height: 0.47
- Package Weight: 0.03
Product info last updated on March 26, 2026 5:22am UTC
Category: Electrical Connectors
