Two-Hole Compression Lug, 500 kcmil Max, 1/4 in Stud, Short Barrel, Copper, Brown MPN:24D020
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5206442

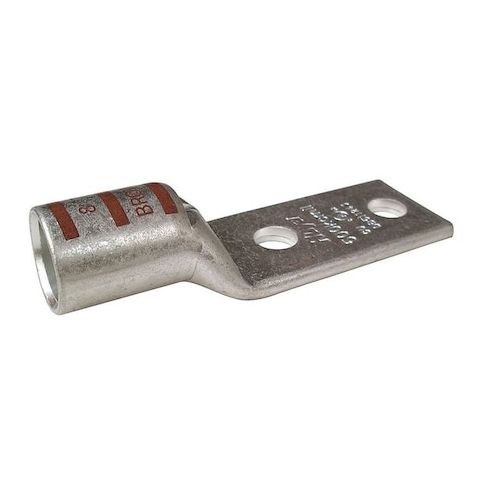

Two-Hole Compression Lug, 500 kcmil Max, 1/4 in Stud, Short Barrel, Copper, Brown
This two-hole compression lug is designed for use with stranded copper wire up to 500 kcmil in size and is suitable for a variety of applications, including electrical and industrial connections. The lug features a seamless copper construction, straight tongue angle, and 1.609 inch tongue width, providing a secure and reliable crimp termination. With a maximum operating temperature of 257 degrees F and a maximum voltage rating of 35 kV, this lug is ideal for use in high-temperature and high-voltage applications. UL listed and available for immediate shipment, this product is perfect for contractors, electricians, and industrial professionals looking for a reliable and efficient connection solution.
Top product features:
- Two-Hole Compression Lug design allows for secure crimp termination of stranded copper wire up to 500 kcmil.
- Copper material provides excellent electrical conductivity and heat dissipation.
- Straight tongue angle and seamless seam design enable reliable and long-lasting connections.
Top product applications:
- Grounding electrical systems
- High-voltage power distribution
- Electrical transmission lines
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 87, Tongue Angle Straight, Tongue Width 1.609 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 0.75 in, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 2
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 3.00
- Package Height: 1.10
- Package Weight: 0.50
Product info last updated on February 12, 2026 12:42am UTC
Category: Electrical Connectors
