TL Bushing, 1610, 15/16 in B Dia, 1 in L MPN:1610X15/16
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G510984347

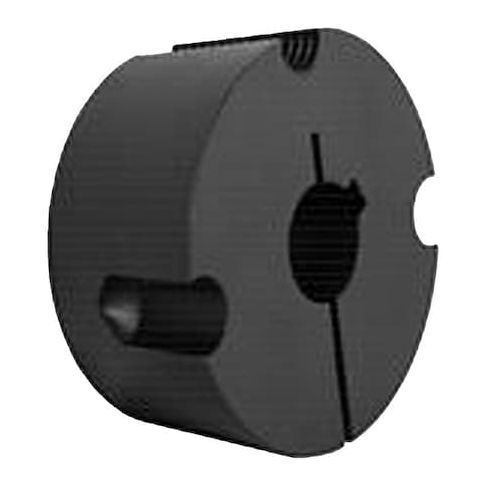

TL Bushing, 1610, 15/16 in B Dia, 1 in L
The GoVets Select TL Bushing is a high-quality, steel-made component designed for use in industrial and mechanical applications. Its 15/16 inch bore diameter and 1 inch length make it suitable for keyed shafts, while the included set screws provide secure fastening. The bushing's flangeless design and 2.13 inch bolt circle diameter offer flexibility in installation and mounting. With a fastening torque capacity of 4,300 in-lb, this bushing is ideal for applications requiring high precision and durability, such as in machinery, equipment, and manufacturing processes. Its compact size and lightweight design make it easy to integrate into various systems.
Top product features:
- Taper Lock Bushing design allows for secure attachment to a keyed shaft.
- Includes ( set screws for easy installation and secure fastening.
- Keyway Height of 1/8 in and Keyway Width of 1/4 in accommodate standard shaft keys.
Top product applications:
- Keyed shafts in machinery and equipment
- Power transmission systems, such as gearboxes and pulleys
- Machine tool applications, including lathes and milling machines
Taper Lock Bushing, Bushing Type Taper Lock, Bore Bushing Series 1610, Bore Diameter 15/16 in, Length 1 in, Bolt Circle Diameter 2.13 in, Bolt Size Not Applicable, System of Measurement Inch, Bushing Diameter Not Applicable, Fastener Tightening Torque Capacity 4,300 in-lb, Flange Type Flangeless, Flange Width Not Applicable, For Shaft Type Keyed, Includes (2) Set Screws, Keyway Height 1/8 in, Keyway Width 1/4 in, Length Less Flange Not Applicable, Material Steel, Overall Diameter 2.25 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.70
- Package Height: 1.30
- Package Weight: 0.86
Product info last updated on February 25, 2026 9:38pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
