Two-Hole Compression Lug, 3/0 AWG Max, 5/16 in Stud, Short Barrel, Copper, Orange MPN:24C430
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4704506

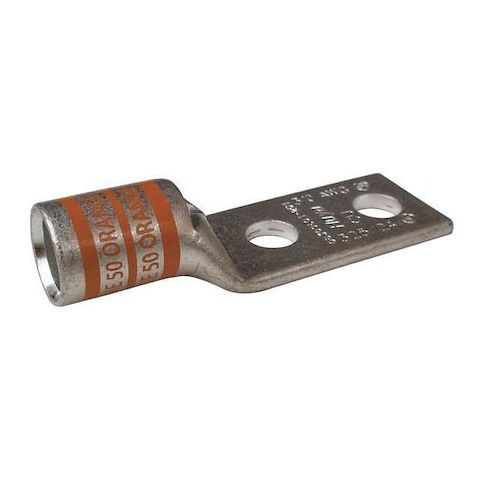

Two-Hole Compression Lug, 3/0 AWG Max, 5/16 in Stud, Short Barrel, Copper, Orange
The Two-Hole Compression Lug from GoVets Select is a reliable and efficient connector for copper stranded wire applications. With a maximum operating temperature of 300°F and a voltage rating of 600V AC, it's suitable for a variety of uses, including industrial and commercial electrical systems. Its compact design and seamless construction make it ideal for space-constrained projects. The lug's copper material ensures excellent conductivity and durability. Perfect for applications such as circuit breakers, panel boards, and motor control centers, this connector provides a secure and reliable connection. Its orange color coding simplifies identification and organization.
Top product features:
- Two-Hole Lug Compression Connector
- Crimps stranded copper wire up to 3/0 AWG
- Has a straight tongue angle for secure wire seating
Top product applications:
- Automotive Electrical Wiring Harness
- Electrical Panel Board Connections
- Heavy Duty Trailer Wiring Connections
Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Orange, Die Code 50, Tongue Angle Straight, Tongue Width 0.94 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 0.80
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on February 26, 2026 11:14pm UTC
Category: Electrical Connectors
