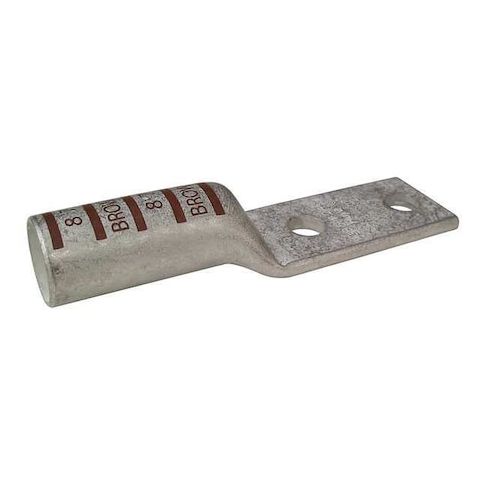

Two-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Brown MPN:24C415
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G4702984
Two-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Brown
Elevate your electrical connections with the GoVets Select Two-Hole Compression Lug. Engineered for reliability and efficiency, this copper lug is designed for use with stranded copper wire up to 500 kcmil. Its long barrel and straight tongue angle ensure secure crimping and minimize the risk of electrical arcing. Suitable for applications in high-voltage environments, this lug is UL listed and can withstand temperatures up to 257°F and voltages up to 35 kV. Ideal for use in industrial settings, power generation, and transmission facilities, the GoVets Select Two-Hole Compression Lug is a trusted choice for professionals seeking high-performance electrical connections.
Top product features:
- Two-Hole Compression Lug provides a secure crimp termination for stranded copper wire up to 500 kcmil.
- It features a long barrel design for easier wire insertion.
- The lug has a seamless construction for reliable electrical connections.
Top product applications:
- Bus Bar Connections
- Electrical Power Distribution Systems
- High-Voltage Transmission Lines
Compression Lug, Barrel Size Long, Color Code Brown, Die Code 87, Tongue Angle Straight, Tongue Width 1.61 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 2
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.60
- Package Height: 1.40
- Package Weight: 0.65
Product info last updated on March 14, 2026 8:05am UTC
Category: Electrical Connectors
