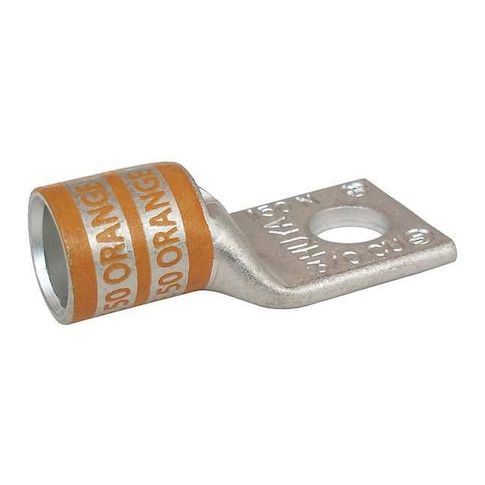

One-Hole Compression Lug, 3/0 AWG Max, 1/4 in Stud, Short Barrel, Copper, Orange MPN:24C347
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4684766
One-Hole Compression Lug, 3/0 AWG Max, 1/4 in Stud, Short Barrel, Copper, Orange
Upgrade your electrical connections with the GoVets Select One-Hole Compression Lug. Designed for copper conductors, this lug features a short barrel and straight tongue angle for easy installation. Rated for 3/0 AWG wire and 1/4 inch studs, it's perfect for a variety of applications, including industrial control panels, motor control centers, and power distribution systems. The lug's copper material and seamless seam ensure reliable connections, while its CSA certification and UL listing guarantee compliance with industry standards. With a maximum operating temperature of 300°F and voltage rating of 600V AC, this lug is built to last.
Top product features:
- One-Hole Lug Compression Connector
- Crimps stranded copper wire up to 3/0 AWG
- Seamless construction for reliable electrical connections
Top product applications:
- Wire harness assembly
- Automotive electrical systems
- Heavy-duty electrical connections
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Orange, Die Code 50, Tongue Angle Straight, Tongue Width 0.92 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.00
- Package Height: 0.80
- Package Weight: 0.01
Product info last updated on February 10, 2026 6:11am UTC
Category: Electrical Connectors
