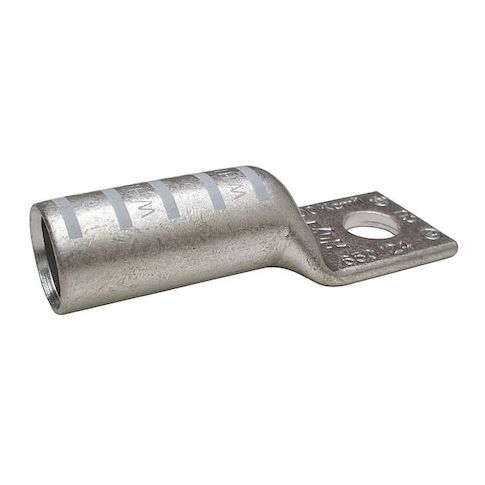

One-Hole Compression Lug, 300 kcmil Max, 1/2 in Stud, Long Barrel, Copper, White MPN:24C333
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4683551
One-Hole Compression Lug, 300 kcmil Max, 1/2 in Stud, Long Barrel, Copper, White
The GoVets Select One-Hole Compression Lug is a reliable and efficient termination solution for copper conductors. Designed for use with stranded copper wire sizes from 300 kcmil, this lug features a long barrel and seamless seam for secure crimping. With a maximum operating temperature of 257°F and a maximum voltage rating of 35 kV, it's suitable for a wide range of applications, including electrical power distribution and transmission systems. Its compact size and ease of use make it an ideal choice for professionals and DIYers alike, providing a safe and reliable connection every time.
Top product features:
- One-Hole Compression Lug provides a secure crimp termination for stranded copper wire up to 300 kcmil.
- The product features a long barrel design for improved grip and stability on the conductor.
- The lug is made of copper with a seamless seam style for optimal electrical conductivity and durability.
Top product applications:
- Heavy-Duty Electrical Wiring
- Electrical Panel Assembly
- High-Voltage Transmission Lines
Compression Lug, Barrel Size Long, Color Code White, Die Code 66, Tongue Angle Straight, Tongue Width 1.25 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 300 kcmil, For Stranded Copper Wire Size - Maximum 300 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 1.30
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on March 10, 2026 2:24pm UTC
Category: Electrical Connectors
