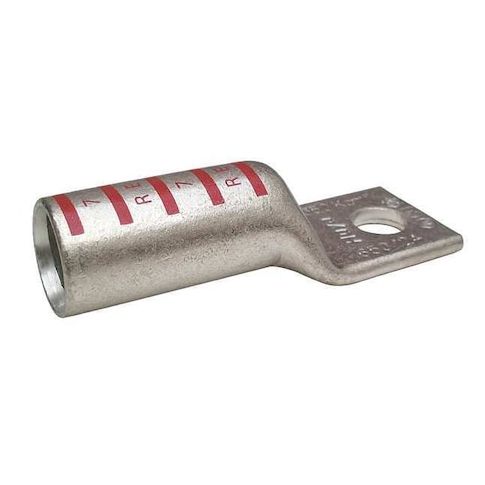

One-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Red MPN:24C334
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4675377
One-Hole Compression Lug, 350 kcmil Max, 1/2 in Stud, Long Barrel, Copper, Red
This one-hole compression lug is designed for use with 350 kcmil stranded copper wire and features a long barrel for secure connections. The lug is made from copper, ensuring excellent conductivity and durability, and is rated for use up to 257°F and 35 kV. The straight tongue angle and seamless seam style provide a reliable termination point for crimp connections. Ideal for use in electrical applications such as industrial control systems, data centers, and commercial buildings, this lug offers a secure and efficient way to connect copper conductors to 1/2 inch studs.
Top product features:
- Seamless construction provides a strong and reliable connection
- Long barrel design allows for a secure crimp on larger conductors
- Maximum operating temperature of 257 Degrees F enables use in high-temperature applications
Top product applications:
- Bus Bar Connectors
- Electrical Panel Connectors
- High Voltage Power Distribution Systems
Compression Lug, Barrel Size Long, Color Code Red, Die Code 71, Tongue Angle Straight, Tongue Width 1.36 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 350 kcmil, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 1.40
- Package Height: 1.00
- Package Weight: 0.25
Product info last updated on February 2, 2026 11:28am UTC
Category: Electrical Connectors
