One-Hole Compression Lug, 4 AWG Max, #10 Stud, Short Barrel, Copper, Gray MPN:24C339
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4671213

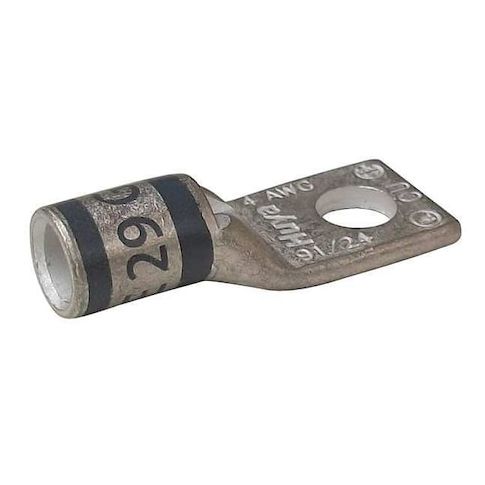

One-Hole Compression Lug, 4 AWG Max, #10 Stud, Short Barrel, Copper, Gray
This One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors in a variety of applications. With a maximum operating temperature of 300°F and a maximum voltage of 600V AC, it's suitable for use in industrial and commercial settings. The lug's short barrel design and seamless construction ensure a secure and durable connection. Ideal for use in electrical panels, switchgear, and other equipment, this lug provides a reliable connection for stranded copper wire sizes from 4 AWG. Its compact size and ease of installation make it a convenient choice for electrical engineers and technicians.
Top product features:
- One-Hole Lug Compression Connector can be used for stranded copper wire size between 4 AWG minimum and 4 AWG maximum.
- The connector has a seamless seam style.
- The connector has a crimp termination style.
Top product applications:
- Automotive Wiring Harness
- Cable TV and Satellite TV Installation
- Industrial Control Panel Wiring
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Gray, Die Code 29, Tongue Angle Straight, Tongue Width 0.55 in, For Conductor Material Copper, For Stud Size #10, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.30
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on February 9, 2026 9:47pm UTC
Category: Electrical Connectors
