One-Hole Compression Lug, 4/0 AWG Max, 5/16 in Stud, Short Barrel, Copper, Purple MPN:24C357
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4665105

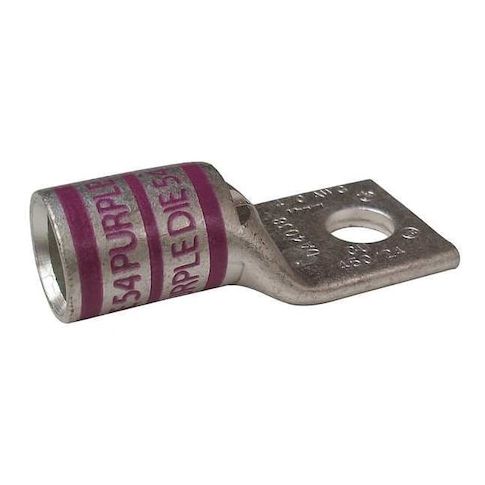

One-Hole Compression Lug, 4/0 AWG Max, 5/16 in Stud, Short Barrel, Copper, Purple
Elevate your electrical connections with the GoVets Select One-Hole Compression Lug, designed for maximum reliability and efficiency. Ideal for copper stranded wire applications, this lug features a short barrel and straight tongue angle for easy installation. With a maximum operating temperature of 300°F and a voltage rating of 600V AC, it's perfect for use in a variety of settings, including industrial, commercial, and residential electrical systems. CSA certified and UL listed, this lug ensures compliance with industry standards. Its seamless design and copper material provide a durable and long-lasting connection, making it an excellent choice for a range of applications.
Top product features:
- One-Hole Lug Compression Connector can be used for stranded copper wire size up to 4/0 AWG.
- Seamless construction provides a strong and durable connection.
- Copper material allows for high-temperature operation up to 300 Degrees F.
Top product applications:
- Automotive Electrical Wiring
- Marine Electrical Wiring
- Industrial Control Panel Wiring
One-Hole Lug Compression Connector, Barrel Size Short, Color Code Purple, Die Code 54, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Copper, For Stud Size 5/16 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.00
- Package Height: 0.60
- Package Weight: 0.01
Product info last updated on February 10, 2026 2:53am UTC
Category: Electrical Connectors
