One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Purple MPN:24C331
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4652706

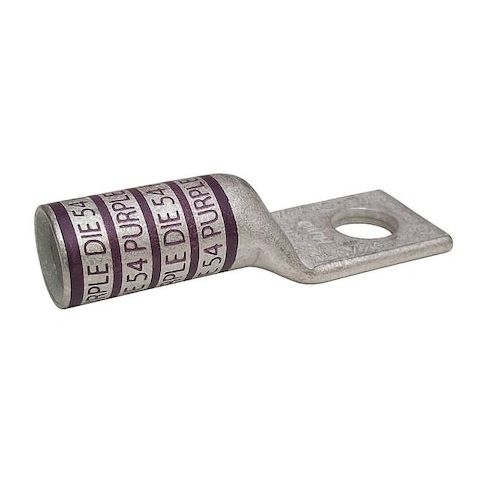

One-Hole Compression Lug, 4/0 AWG Max, 1/2 in Stud, Long Barrel, Copper, Purple
Elevate your electrical connections with GoVets Select's One-Hole Compression Lug, designed for maximum reliability and efficiency. Ideal for use with copper conductors, this lug features a long barrel and straight tongue angle, ensuring secure crimp connections. With a maximum operating temperature of 300°F and voltage rating of 600V AC, it's perfect for a variety of applications, including commercial and industrial electrical installations. Its seamless construction and CSA certification make it a trusted choice for professionals, while its compact size and weight make it easy to handle and store. Upgrade your connections with GoVets Select's superior compression lugs.
Top product features:
- One-Hole Lug Compression Connector provides a crimp termination style for secure connections.
- The connector has a long barrel design for accommodating larger conductors.
- The connector is rated for a maximum operating temperature of 300 Degrees F, allowing for use in high-temperature applications.
Top product applications:
- Marine electrical systems for 12V DC applications due to its high voltage rating and copper construction
- High-power audio equipment connections where the long barrel lug provides extra grip on the stud
- Automotive electrical systems for heavy-duty applications such as diesel engine connections where the 4/0 AWG rating is sufficient
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Purple, Die Code 54, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 4/0 AWG, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 1
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.00
- Package Height: 0.70
- Package Weight: 0.01
Product info last updated on February 12, 2026 9:53am UTC
Category: Electrical Connectors
