Solenoid Air Control Valve, 1/4 In, 24VDC MPN:AV-SOL-24VDC-1.8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4485336

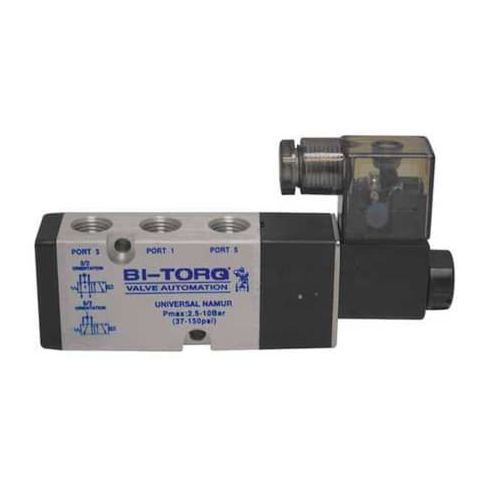

Solenoid Air Control Valve, 1/4 In, 24VDC
This 1/4 inch Solenoid Air Control Valve is a reliable and efficient solution for various industrial applications, including pneumatic systems and air control circuits. With a 4-way/2-position design and 24VDC voltage, it provides precise control over airflow and pressure. The valve's operational pressure range of 37 to 150 psi makes it suitable for a wide range of applications, from low-pressure systems to high-pressure applications. Its compact design and NEMA 4 classification ensure durability and resistance to harsh environments, making it an ideal choice for use in manufacturing, oil and gas, and other industrial settings.
Top product features:
- Operational pressure range of 37 to 150 psi allows for use in a variety of applications.
- The valve actuator/return solenoid/spring design enables automatic return to a default position.
- The valve is capable of controlling airflow in a 4-way/2-position configuration.
Top product applications:
- Air Compressor System
- Automotive Brake System
- Industrial Process Control System
Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/4 in, Operational Pressure Range 37 to 150 psi, NEMA Classification NEMA 4, Body Style Body-Ported, Pilot Port Size 1/4 in NPT, Pilot Pressure 35 psi, Coefficient of Volume 1.4, 10mm, DIN Connector Electrical Connections, Power Consumption 4.8 W, Ambient Temp. Range 14 Degrees to 122 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 3.50
- Package Height: 1.50
- Package Weight: 0.80
Product info last updated on March 15, 2026 8:04pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
