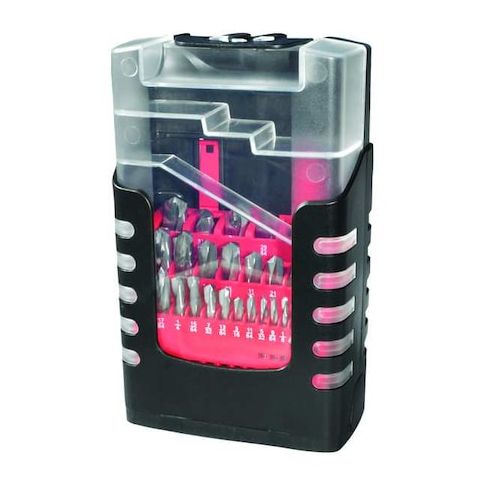

Screw Machine Drill Bit Set, Carbide, 24-Piece MPN:460-000024B

The ZORO SELECT - 460-000024B is a screw machine drill bit set intended for use in drilling operations for metalworking and machining applications. This set includes 24 solid carbide drill bits, ranging in size from 1.0 mm to 12.5 mm, specified for materials classified under ISO codes H, K, M, P, S. The drill bits have a 135° four-facet point geometry and a metric measurement system with screw-machine length.

Key Features:

• - Material: Solid carbide made from solid carbide C2 grade
• - Drill bit sizes included: 1.0 mm to 12.5 mm in 0.5 mm increments (24 pieces total)
• - Point type: Four facet point with a 135° angle
• - Flutes: 2 spiral flutes with a 15° helix angle, right-hand spiral direction
• - Shank type: Straight, matching drill diameter (1.00 mm to 12.50 mm)
• - Overall length: 38 mm to 94 mm (varies by bit size)
• - Web construction: split with thinned web
• - Drill diameter tolerance: +0.0000 in / −0.0005 in
• - Coating: Aluminum Titanium Nitride (AlTiN) finish
• - Compatible with materials classified under ISO codes H, K, M, P, S
• - Package type: Box for storage
