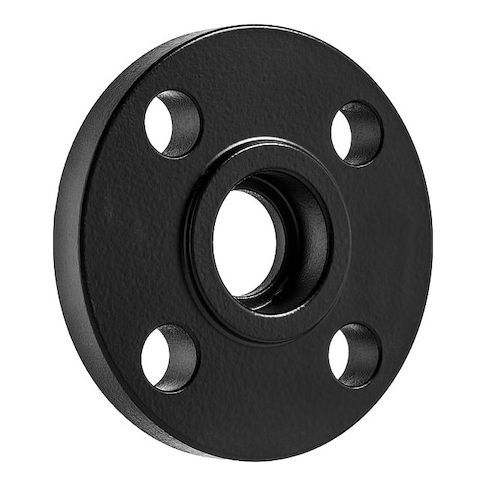

Socket Weld Flange Pipe Flange, 4" Pipe, Flanged x Socket Weld, Steel, Class 1500 MPN:BULK-PF-584
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G400424793
Socket Weld Flange Pipe Flange, 4" Pipe, Flanged x Socket Weld, Steel, Class 1500
Upgrade your piping system with our Socket Weld Flange Pipe Flange, designed for 4in pipe applications. This steel flange features a raised face and socket weld connection, ensuring a secure and leak-free seal. With a maximum operating pressure of 3,600 psi at 72°F, it's perfect for high-pressure steam applications. The flange's black coating provides corrosion resistance, while its A105 material meets rigorous industry standards. Suitable for use in chemical plants, power generation, and oil and gas facilities, this flange is a reliable choice for demanding environments. Order now and ensure a safe and efficient piping system.
Top product features:
- Raised flange design for easy installation and access
- Socket weld connection for secure and leak-free pipe joining
- Class 1500 rating for high-pressure and high-temperature applications
Top product applications:
- High pressure steam piping systems
- Oil and gas industry applications
- Power plant piping systems
Flange, Raised, 4 in Nominal Pipe Size, Flanged x Socket Weld, 12 1/4 in Flange Outside Diameter, 2 1/8 in Flange Thickness, 12 1/4 in Overall Length, Steel, Black Coated, A105, Class Class 1500, For Pipe Schedule Schedule XXH, 3,600 psi @ 72 Degrees F Maximum Operating Pressure, 3,600 psi Max. Steam Pressure, 80 Degrees to 780 Degrees F, Number of Bolt Holes 8, 9 1/2 in Bolt Circle Diameter, 1 3/8 in Bolt Hole Diameter
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.24
- Package Width: 2.19
- Package Height: 3.24
- Package Weight: 1.23
Product info last updated on February 2, 2026 5:04am UTC
Category: Pipes, Valves and Fittings
