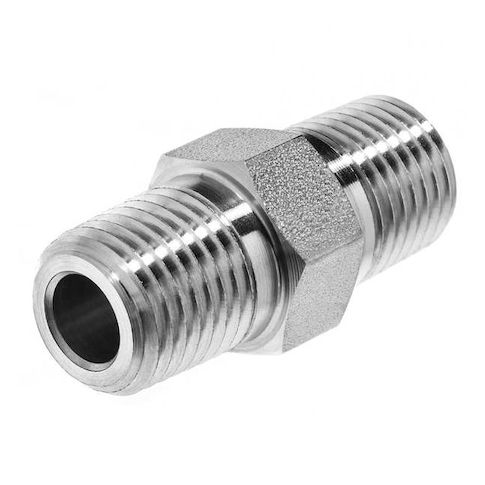

Steel Straight Adapter, 1/4 in Male NPT x 1/4 in Male BSPT, Galvanized, 8, 000 psi MPN:ZUSA-PF-8003

• The ZORO SELECT - ZUSA-PF-8003 is a steel instrumentation pipe fitting with a galvanized coating that provides corrosion resistance. It is designed as a straight adapter featuring male threaded connections on both ends, with Side A having 1/4 in NPT threads and Side B having 1/4 in BSPT threads. Compatible with instrumentation tubing and piping systems carrying fluids such as air, hydraulic fluid, natural gas, non-potable water, oil, and steam up to 8,000 psi. The fitting meets ANSI B31.1 standards with a maximum operating pressure: 8,000 psi. It is silver and measures 1 7/16 in overall length.

• - Construction: Steel material with a galvanized coating.
• - Connection Type & Threading: Side A is 1/4 in Male NPT with 18 TPI
• Side B is 1/4 in Male BSPT with 19 TPI.
• - Shape: Straight adapter fitting.
• - Maximum operating pressure: 8,000 psi.
• - Standards: Complies with ANSI B31.1.
• - Dimensions: Overall length of 1 7/16 in and 5/8 in across flats hex size for wrenching.
• - Does not include pre-applied thread sealant or seals.
• - Not compliant with applicable low-lead regulations.
