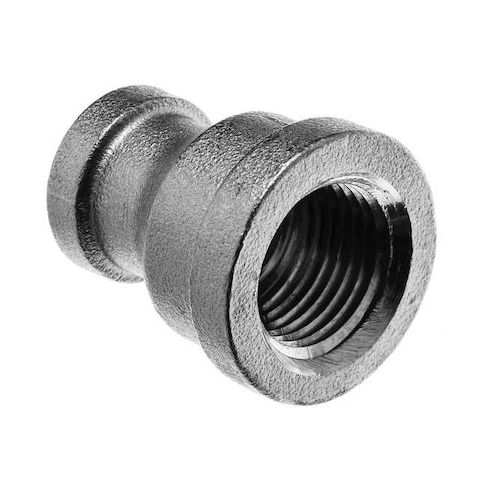

Reducing Coupling, 316 Stainless Steel, Class 150, Female BSPT x Female BSPT, 2 in x 1 1/2 in MPN:ZUSA-PF-7566

• The ZORO SELECT - ZUSA-PF-7566 is a stainless steel Class 150 reducing coupling. Made from 316 stainless steel, it provides corrosion-resistant connections for various systems including air, natural gas, oil, potable water, and steam within specified pressure and temperature parameters. This fitting meets ASME/ANSI Class 150 pressure–temperature ratings, rated for operation within the specified pressure range of up to 150 psi. The coupling features female BSPT threaded connections on both ends with nominal pipe sizes of 2 inches on Side A and 1 1/2 inches on Side B, facilitating secure, threaded pipe connections.

  Key Features:

  • - Material: 316 stainless steel, offering corrosion resistance.
  • - Pressure Class: Class 150, rated up to 150 psi operating and steam pressure.
  • - Connection Type: Both ends are female BSPT threaded.
  • - Nominal Pipe Size: Side A is 2 in
  • Side B is 1 1/2 in.
  • - Thread Size: 11 threads per inch on both Side A and Side B.
  • - Application: Compatible with air, natural gas, oil, potable water, and steam systems within specified pressure and temperature parameters.
  • - Overall Length: 64 mm.
  • - Meets ISO 7-1 threading standards.
  • - Does not include pre-applied thread sealant or seals.
  • - Color: Silver.
