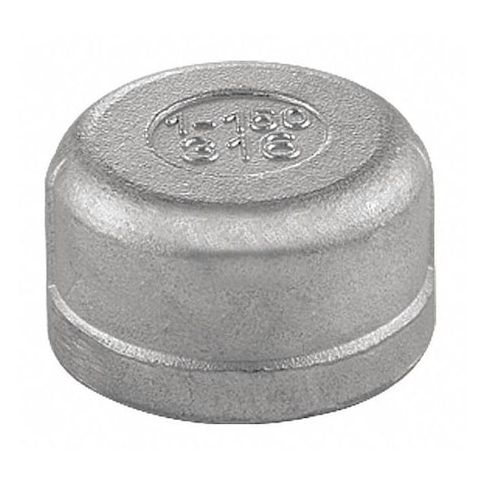

1-1/2" FNPT 316 SS Threaded Cap MPN:60RDC111N112

The ZORO SELECT - 60RDC111N112 is a stainless steel pipe cap that closes and seals the end of a pipe, preventing flow and protecting the pipe interior. It features an FNPT (female national pipe thread) connection and is constructed from 316L stainless steel, suitable for use with 1 1/2-inch nominal pipe size and Schedule 40 pipe. This fitting is rated for Class 150 pressure, with a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi. It meets ANSI B1.20.1 standards and operates within a temperature range of -20 to 350 degrees Fahrenheit. Key Features:

• - Material: 316L stainless steel.
• - Nominal pipe size: 1 1/2 inches, matching Schedule 40 pipe.
• - Connection type: FNPT threaded end.
• - Pressure rating: Class 150, maximum operating pressure of 300 psi.
• - Maximum steam pressure: 150 psi.
• - Temperature range: -20°F to 350°F.
• - Dimensions: Outside diameter 1 1/2 inches, overall length 36 mm.
• - Does not include pre-applied thread sealant or any sealing components.
• - Magnetic: No.
