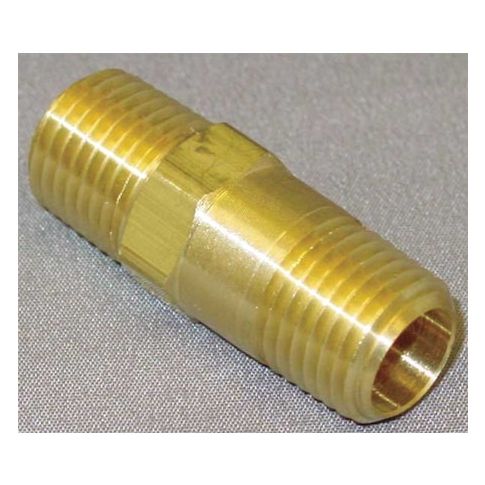

1/4" MNPT Brass Piston Spring Check Valve MPN:CHK BRS 410-4M4M-F
Free Shipping
In Stock
This 1/4in MNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various industrial and commercial applications. Its inline piston design allows for full flow and can be mounted in either a horizontal or vertical orientation, making it a versatile component for plumbing and piping systems. The valve's viton seal and stainless steel spring ensure a long-lasting and leak-free operation, while its brass body and seat provide excellent corrosion resistance. Suitable for use in water and steam systems, this check valve is ideal for applications such as HVAC, hydronic heating, and water treatment.
Top product features:
- It has a cracking pressure of 1 psi.
- It is designed for full flow.
- It has a maximum operating temperature of 180 Degrees F.
Top product applications:
- Steam Traps
- Water Pressure Regulators
- Fluid Pumps
This Zoro Select 410 series piston spring check valve is an inline valve for compatible air and fluid piping systems, intended for one-way flow applications in compatible air and fluid piping systems. It features a spring-loaded brass piston rated with 1 psi cracking pressure and a spring-loaded piston check mechanism for reverse-flow restriction. The brass body has 1/4 in male NPT x male NPT connections and supports horizontal or vertical mounting.
Key Features:
- 410 series piston spring check valve with inline piston design
- Brass body, brass check mechanism, and brass seat
- 1/4 in male NPT x male NPT connections
- For compatible media: air and fluids
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Seal material: Viton/FKM
- Spring material: stainless steel
- Full flow: yes
- Mounting orientation: horizontal or vertical
- Cv: 0.6
- Overall length: 1.63 in
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.28
