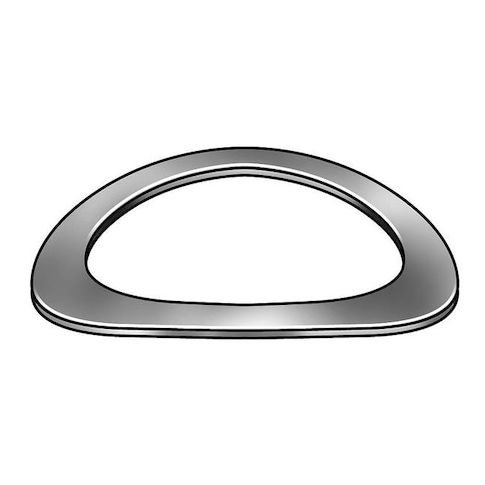

Disc Spring, Curved, 0.5, 301 SS, PK5 MPN:1UAR1
Disc Spring, Curved, 0.5, 301 SS, PK5
This curved disc spring is made from 301 stainless steel and is designed to provide a high load capacity while maintaining a low deflection. With a load of 18.1 pounds and a deflection of 0.052 inches, it is ideal for applications where a compact and durable spring is required. Suitable for use in a variety of industries, including aerospace, medical, and food processing, this disc spring is a reliable solution for applications such as vibration damping, shock absorption, and load support. Its compact size and high load capacity make it an excellent choice for use in tight spaces.
Top product features:
- Curved shape allows for compact installation and reduced space requirements
- Made from 301 Stainless Steel for corrosion resistance and durability
- Deflects 0.052 inches under a load of 18.1 pounds, providing a controlled spring action
Top product applications:
- Clamp for holding and positioning small parts
- Valve spring or actuator component
- Component in a mechanical assembly requiring a curved, compressible spring
Disc Spring, Curved, 301 Stainless Steel, Min Inside Dia 0.525 In, Max Outside Dia 1.225 In, Thickness 0.021 In, Overall Height 0.151 In, For Hole Size 1 1/4 In, For Rod Size 1/2 In, Load 18.1 Lbs, Deflection @ Load 0.052 In, Meets/Exceeds AISI Type 302, Package 5
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.30
- Package Width: 2.00
- Package Height: 0.20
- Package Weight: 0.03
Product info last updated on March 22, 2026 6:16pm UTC
Category: Springs
