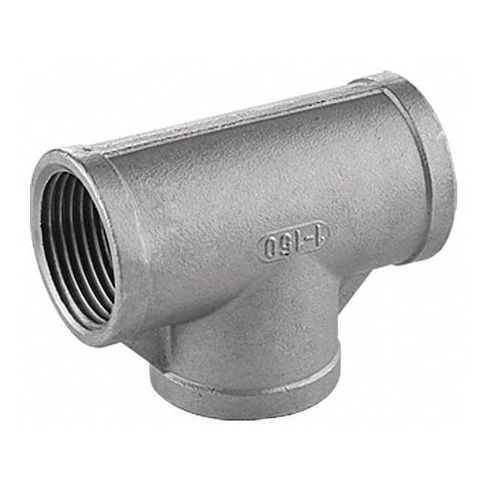

304 Stainless Steel Tee, 3/8 in x 3/8 in x 3/8 in Fitting Pipe Size, Class 150 MPN:40TE111N038

The ZORO SELECT - 40TE111N038 is a stainless steel Tee pipe fitting designed to connect three pipe runs in a T-shaped configuration, suitable for applications involving fluid or gas flow distribution. Constructed from 304 stainless steel, rated for use with air, natural gas, non-potable water, oil, potable water, and steam systems. This fitting features female National Pipe Thread (NPT) connections on all three sides, each with a nominal pipe size of 3/8 inch and an outside diameter of 3/8 inch, rated for maximum operating pressure of 300 psi according to Class 150 standards. It is rated for use with Schedule 40 pipe and offers corrosion resistance for distribution and process piping.

Key Features:

• - Material: 304 Stainless Steel
• - Pipe Size: 3/8 inch nominal size on all three connection sides
• - Connection Type: Female NPT threaded ends on sides A, B, and C
• - Thread Pitch: 18 threads per inch on all connections
• - Pressure Rating: Class 150, maximum operating pressure of 300 psi
• - Applications: Suitable for air, natural gas, non-potable water, oil, potable water, and steam
• - Compliance: Meets ASTM-A-351 material standard, ASME B1.20.1 threading standard, and MSS-SP-114 Class 150 pressure ratings
• - Includes no pre-applied thread sealant or additional sealing components
• - Overall length of 34.95 mm
• - Color: Silver
