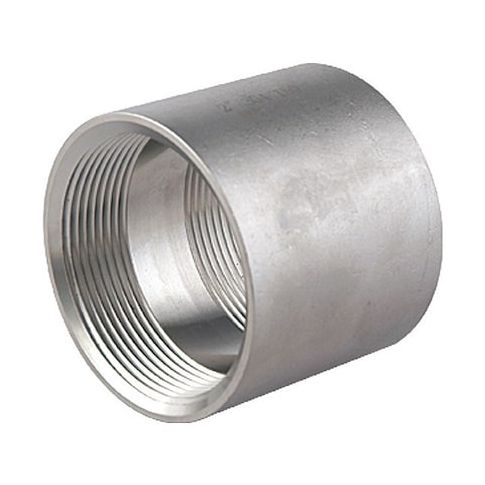

304 Stainless Steel Coupling, 1/2 in x 1/2 in Fitting Pipe Size, Female NPT x Female NPT, Class 150 MPN:40FC111N012

• The ZORO SELECT - 40FC111N012 is a stainless steel coupling that connects two 1/2-inch pipes in-line with a straight-through flow path. Constructed from 304 stainless steel, this coupling offers media compatibility: air

• natural gas
• potable water
• non-potable water
• oil
• steam. It features female National Pipe Thread (FNPT) connections on both ends, rated as Class 150 for pressure, supporting a maximum operating pressure of 300 psi and maximum steam pressure of 150 psi. The fitting is silver in color and measures approximately 35.1 mm in length. Key Features:

  • - Material: 304 Stainless Steel, conforming to ASTM A351 standards.
  • - Connection Type: Female National Pipe Taper (FNPT) threads on both ends, conforming to ASME B1.20.1.
  • - Nominal Pipe Size: 1/2 inch with 14 threads per inch on both sides.
  • - Pressure Rating: Class 150 with maximum operating pressure of 300 psi and maximum steam pressure of 150 psi.
  • - Applications include multiple fluids and gases such as air, natural gas, oil, potable and non-potable water, and steam.
  • - Dimensions: Overall length of 35.1 mm.
  • - Compliance: Meets MSS-SP-114 Class 150 pressure ratings and is low lead compliant for potable water use.
  • - Does not include pre-applied thread sealant or additional seals.
