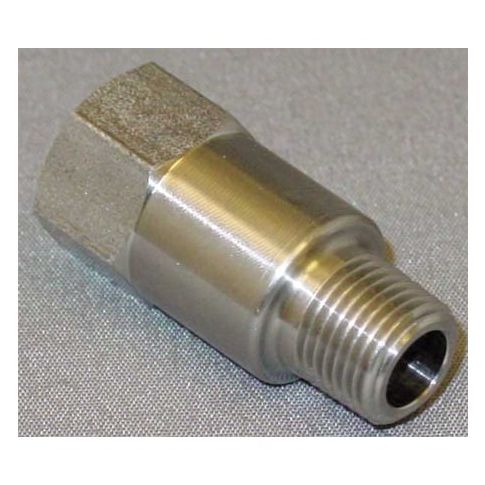

1/8" MNPT x FNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 210-2M2F-B
Free Shipping
In Stock
This 1/8in MNPT x FNPT Stainless Steel Piston Spring Check Valve is a reliable and efficient solution for a variety of applications. Suitable for use in both horizontal and vertical orientations, it's perfect for installations where backflow prevention is critical. The valve's stainless steel construction ensures durability and resistance to corrosion, while its piston spring mechanism provides a consistent and reliable flow control. Ideal for use in water, steam, and other fluid systems, this check valve can withstand pressures up to 500 psi and temperatures from -20 to 180°F, making it a versatile and long-lasting addition to any system.
Top product features:
- It has a single flow design to allow fluid to flow in one direction.
- It has a piston mechanism to provide a precise and reliable shut-off.
- It is made with stainless steel to provide corrosion resistance and durability.
Top product applications:
- Hydraulic systems
- Fluid handling equipment
- Medical equipment
This stainless steel piston spring check valve is an inline, single-flow valve for air and fluid applications compatible with the valve materials and specified operating ranges. It uses a spring-loaded piston to allow flow in one direction and closes at 1 psi cracking pressure to reduce reverse flow in piping systems. The valve has 1/8 in. MNPT x FNPT connections and can be mounted horizontally or vertically.
Key Features:
- Valve type: Piston spring check valve with inline piston design
- Body material: Stainless steel
- Check mechanism, seat, and spring material: Stainless steel
- Seal material: Buna-N
- Connection size and type: 1/8 in. MNPT x FNPT
- Flow design: Single
- full flow: Yes
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 degrees F to 180 degrees F
- Mounting orientation: Horizontal or vertical
- Cv: 0.2
- Standards: UL, UR
- Valve series: 210
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.28
