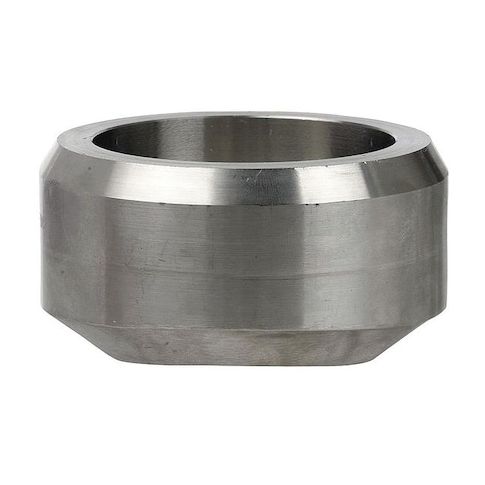

1 in Socket Weld Stainless Steel Weldable Outlet, Class 3000, Schedule 40 MPN:4307002540
This stainless steel weldable outlet is designed for use in piping systems requiring leak-tight branch connections, offering a durable and corrosion-resistant solution for high-pressure applications. Constructed from high-strength 304 stainless steel, it can withstand pressures up to 2,570 psi at 100°F and steam pressure up to 1,965 psi at 350°F. Suitable for use in a variety of industries, including chemical processing, oil and gas, and power generation, this outlet provides a reliable connection for critical piping systems, ensuring efficient and safe operation. Its compact design and standard dimensions make it an ideal choice for new installations and retrofits.
Top product features:
- Made from 304 stainless steel, offering durability and corrosion resistance.
- Rated for operation up to 2,570 psi at 100°F and steam pressure up to 1,965 psi at 350°F.
- Features socket weld end connections with female gender and Nominal Pipe Size of 1 inch (OD 2 1/8 inches).
Top product applications:
- Industrial Piping Systems
- High-Pressure Chemical Processing Equipment
- Steam Power Plants
The ZORO SELECT - 4307002540 is a stainless steel weldable outlet intended for use in piping systems requiring leak-tight branch connections. It is constructed from high-strength stainless steel and compatible with socket weld or butt-weld connections, with sizes and schedules matching typical piping specifications.
Key Features:
- - Material: Made from 304 stainless steel, offering durability and corrosion resistance.
- - Pressure Rating: Rated for operation up to 2,570 psi at 100°F and steam pressure up to 1,965 psi at 350°F.
- - Connection Type: Features socket weld end connections with female gender and Nominal Pipe Size of 1 inch (OD 2 1/8 inches).
- - Pressure Class: Constructed to Class 3000 standards, ensuring high-pressure capabilities.
- - Outside Diameter: 2-1/8 inches, matching typical pipe dimensions.
- - Standards: Manufactured in accordance with MSS SP-97 standards.
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 1.40
- Package Weight: 0.65
