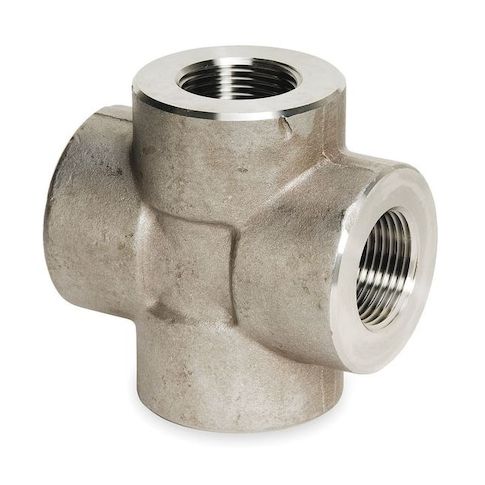

1-1/2" FNPT SS Cross MPN:4307001020
The ZORO SELECT 4307001020 stainless steel cross pipe fitting is a versatile and reliable solution for connecting or splitting flow among four pipe runs arranged at 90° in one plane. Constructed from 304 stainless steel, it features female NPT connections on all four ends, making it suitable for a wide range of applications, including industrial, commercial, and residential plumbing, HVAC, and process control systems. Its compact design and high-pressure rating make it an ideal choice for use in high-traffic areas, heavy-duty environments, and systems requiring precise flow control. Its durability and resistance to corrosion ensure long-lasting performance.
Top product features:
- Four female threaded NPT connections with 1 1/2-inch nominal pipe size on all sides allow for flexible connection or splitting of flow among four pipe runs.
- The product is constructed from 304 stainless steel, providing durability and resistance to corrosion.
- The fitting features a 90° design, allowing for easy connection or splitting of flow among four pipe runs arranged in one plane.
Top product applications:
- Hydraulic systems
- Pneumatic systems
- Industrial process piping
The ZORO SELECT - 4307001020 is a stainless steel cross pipe fitting designed to connect or split flow among four pipe runs arranged at 90° in one plane. Constructed from 304 stainless steel with female NPT connections, it features female National Pipe Tapered Threaded (NPT) connections on all four ends, each with a nominal pipe size of 1 1/2 inches. This fitting is rated for operation within the specified pressure ranges as per industry standards. Its dimensions include an overall length of 4 3/4 inches and an outside diameter of 2-31/32 inches.
Key Features:
- - Four female threaded NPT connections with 1 1/2-inch nominal pipe size on all sides (A, B, C, D)
- - Material grade: 304 stainless steel
- - The product conforms to industry-standard pressure ratings for Class 3000 fittings
- - Overall length: 4 3/4 inches
- - Outside diameter at connection points: 2-31/32 inches
- - Threads conform to ASME B1.20.1 NPT standard
- Materials conform to ASTM A182
- Dimensions conform to ASME B16.11
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 4.80
- Package Height: 3.60
- Package Weight: 8.63
