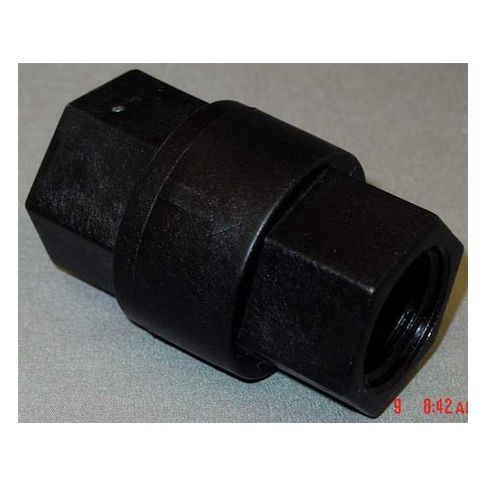

3/4" FNPT Ball Cone Spring Check Valve MPN:FP CHK 687-12F12F-F
Free Shipping
In Stock
The GoVets Select 3/4in FNPT Ball Cone Spring Check Valve is a reliable and versatile solution for various applications. This inline check valve is designed for horizontal or vertical mounting and features a cracking pressure of 0.33 psi, making it suitable for a range of fluid flow control needs. The valve's glass-filled polypropylene construction ensures durability and resistance to extreme temperatures (-20°F to 140°F). With a maximum water pressure rating of 125 psi, it's ideal for use in water treatment, irrigation, and other low-pressure systems. Its compact design and ease of installation make it a convenient choice for plumbers and engineers.
Top product features:
- The valve has a single flow design for unidirectional flow control.
- The valve body is made of glass filled polypropylene for durability and resistance to corrosion.
- The valve has a Viton seal for reliable sealing and resistance to extreme temperatures.
Top product applications:
- Chemical Processing
- Water Treatment Systems
- Steam-Free Applications
ZORO SELECT 687 series 3/4 in. ball cone spring check valve is an inline, single-flow check valve with FNPT x FNPT female threaded connections. It uses a spring-loaded poppet-style ball cone mechanism for single-direction flow applications. This valve is for use with air and fluids and features a glass-filled polypropylene body with a Viton seal.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size: 3/4 in. on both sides
- Connection type: FNPT x FNPT with female threaded ends
- Body material: Glass-filled polypropylene
- Check mechanism: Poppet
- Flow design: Single
- full flow: Yes
- Cracking pressure: 0.33 psi
- Media: Air, fluids
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal or vertical
- Seal material: Viton (FKM)
- Seat material: Glass-filled polypropylene
- Spring material: Stainless steel
- Cv: 12.5
- Overall size: 2.5 in. L x 1-3/8 in. H x 1-3/8 in. W
- Hex size: 15/16 in.
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 0.58
