Coiled Spring Pin, 1/16 in Outside Dia, 9/16 in L, Steel, 100 PK MPN:U39140.006.0056
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3398967

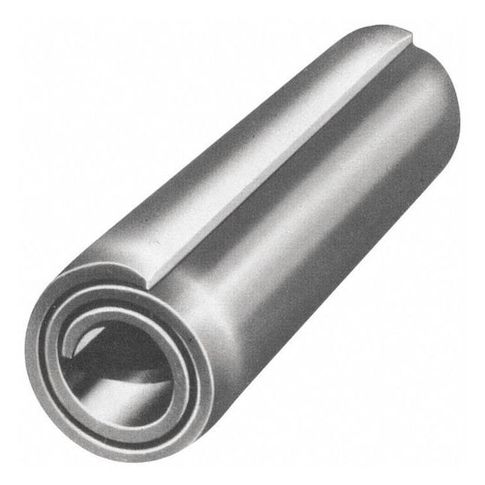

Coiled Spring Pin, 1/16 in Outside Dia, 9/16 in L, Steel, 100 PK
This 1/16 in outside diameter, 9/16 in long coiled spring pin is made from high-quality SAE 1070 steel and features a chamfered end. Ideal for applications requiring a secure and reliable fastening solution, these pins are perfect for use in electronics, automotive, and aerospace industries. The coiled design provides flexibility and allows for easy installation in tight spaces. With a minimum hole diameter of 1/16 in, these pins are suitable for a variety of uses, including securing wires, cables, and other components. Their compact size and secure holding power make them an essential component for many applications.
Top product features:
- Coiled design provides flexibility and elasticity to the pin.
- Chamfered end allows for easy insertion into small holes.
- Steel construction provides durability and resistance to wear.
Top product applications:
- General hardware assembly
- Cabinets and furniture assembly
- Model building and crafting
Coiled Spring Pin, 1/16 In. dia,9/16 In. L,PK100, System of Measurement Inch, Pin Diameter 1/16 in, Pin Type Coiled, Material Steel, Material Grade/Class SAE 1070, Finish Plain, Usable Length 9/16 in, End Type Chamfered, Chamfer Diameter 0.059 in, Fits Minimum Hole Diameter 1/16 in, Fits Maximum Hole Diameter 1/16 in, Shank Length 9/16 in, Maximum Chamfer Length 0.028 in, Minimum Chamfer Length Not Applicable, Nominal Diameter 1/16 in, Standards ASME B18.8.2, Shank Length Tolerance +/-0.025 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 12.99
- Package Width: 6.77
- Package Height: 1.00
- Package Weight: 0.04
Product info last updated on March 1, 2026 3:46pm UTC
Category: Pins
