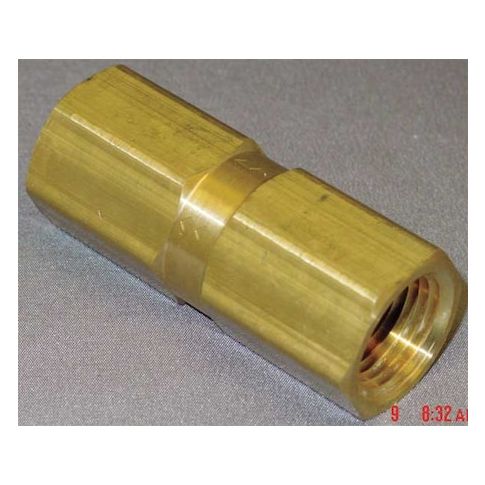

1/2" FNPT Brass Piston Spring Check Valve MPN:CHK BRS 815-8F8F-F
Free Shipping
In Stock
The GoVets Select 1/2in FNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications. Ideal for use in hot and cold water systems, this valve features a cracking pressure of 1 psi and can withstand up to 500 psi of water pressure. Its inline piston design and stainless steel spring ensure smooth operation and long-lasting performance. Suitable for horizontal or vertical mounting, this valve is perfect for residential and commercial plumbing, HVAC, and irrigation systems. Its compact size and Viton seals make it a great choice for space-constrained installations.
Top product features:
- Piston design allows for inline installation
- Viton seal material provides chemical resistance
- Stainless steel spring ensures durability
Top product applications:
- Water supply systems for residential buildings
- Industrial process control systems
- Hydraulic systems for heavy equipment
ZORO SELECT Series 815 check valve is an inline piston spring check valve for general-purpose air and fluid service. It uses a spring-loaded piston configured to allow flow in one direction and to close when flow slows or reverses in piping systems. This brass valve has a 1/2 in FNPT x FNPT connection, a 1 psi cracking pressure, and a full-flow single design for inline installation in horizontal or vertical mounting positions.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism and inline body style.
- Body and internals: Brass body, brass check mechanism, brass seat, and stainless steel spring.
- Connections: 1/2 in female NPT x female NPT.
- Flow and pressure: Full-flow design, Cv 3.1, and 1 psi cracking pressure.
- Media: Air and fluids.
- Pressure ratings: 500 psi maximum operating pressure, 500 psi maximum water pressure, and 1200 psi maximum pressure.
- Temperature range: -20 degrees F minimum to 180 degrees F maximum operating temperature.
- Seal materials: Viton/FKM and PTFE.
- Mounting: Horizontal or vertical.
- Dimensions: 2.55 in overall length, 1 in overall height, 1 in overall width, and 1 in hex size.
- Standards: UL and UR.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.50
- Package Height: 1.00
- Package Weight: 1.87
