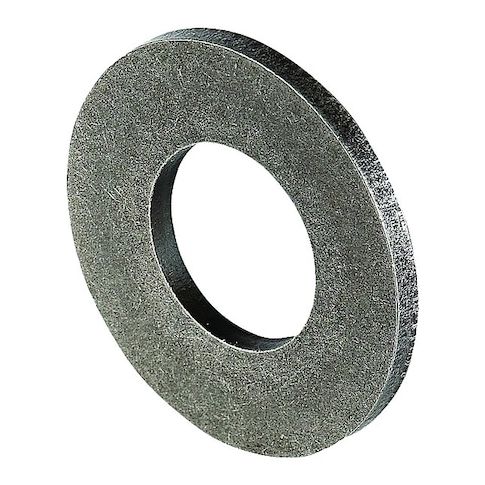

Disc Spring, Belleville, 1.5, High Carb Stl MPN:1NDZ2
Disc Spring, Belleville, 1.5, High Carb Stl
The Belleville Disc Spring is a high-performance component ideal for applications requiring precise load management and minimal deflection. Made from high carbon steel, this disc spring offers exceptional strength and durability, with a load capacity of 1290 lbs and a deflection of 0.077 in at maximum load. Its compact design makes it suitable for use in a variety of industries, including aerospace, automotive, and heavy machinery. The disc spring's ability to distribute load evenly and provide a high flat load of 3210 lbs makes it an excellent choice for applications where vibration and shock resistance are critical.
Top product features:
- High Carbon Steel construction for durability and resistance to wear and tear.
- Meets/Exceeds ASTM-A684 standards for quality and performance.
- Deflects up to 0.077 inches under a load of 1290 pounds for shock absorption and stability.
Top product applications:
- Disc springs can be used to provide a high load capacity in a compact space, making them ideal for applications such as
- Shock absorption in heavy machinery
- Suspension systems in vehicles
Disc Spring, Belleville, High Carbon Steel, Min Inside Dia 1.531 In, Max Outside Dia 3.000 In, Thickness 0.093 In, Overall Height 0.189 In, Load 1290 Lbs, Deflection @ Load 0.077 In, Flat Load 3210 Lbs, Meets/Exceeds ASTM-A684
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 0.20
- Package Weight: 0.14
Product info last updated on February 2, 2026 11:16am UTC
Category: Springs
