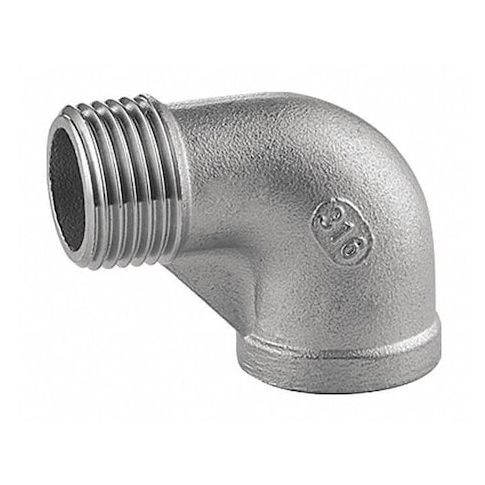

90° Street Elbow, 1/8 in x 1/8 in, Male NPT x Female NPT, 304 Stainless Steel, Class 150 MPN:40SE113N018
This 90° Street Elbow fitting is designed for connecting pipes and fittings in fluid or gas systems, featuring one MNPT end and one FNPT end with NPT threads. Made from 304 stainless steel, it offers durability and resistance to corrosion. Suitable for use with air, natural gas, non-potable water, oil, potable water, and steam, it's ideal for applications in industries such as HVAC, plumbing, and industrial processes. With a pressure rating of Class 150 and a maximum working pressure of 300 psi, it provides reliable performance in a wide range of operating conditions and environments.
Top product features:
- 304 Stainless Steel construction for durability and resistance to corrosion
- One MNPT end and one FNPT end with NPT threads for direct connection to compatible piping and fittings
- Thread size of 27 threads per inch on both sides for secure connections
Top product applications:
- Air distribution systems
- Natural gas distribution systems
- Potable water distribution systems
The ZORO SELECT - 40SE113N018 is a 304 stainless steel street elbow fitting designed to connect pipes and fittings in fluid or gas systems, featuring one MNPT end and one FNPT end with NPT threads, enabling direct connection to compatible piping and fittings. Pressure rating: Class 150
- maximum working pressure: 300 psi
- steam pressure limit: 150 psi. Suitable for use with air, natural gas, non-potable water, oil, potable water, and steam within specified operating conditions. It is intended for pipes with a 1/8 inch nominal size and Schedule 40 thickness. The fittings conform to ASTM-A-351 material standards, ANSI/ASME B1.20.1 thread standards, and MSS-SP-114 Class 150 pressure requirements.
Key Features:
- - Pipe fitting material: 304 Stainless Steel
- - Specific fitting shape: Street Elbow with one MNPT end and one FNPT end
- - Nominal pipe size: 1/8 inch x 1/8 inch
- - Thread size: 27 threads per inch on both sides
- - Pressure rating: Class 150
- maximum working pressure: 300 psi
- - Steam pressure limit: 150 psi
- - Suitable for use with air, natural gas, non-potable water, oil, potable water, and steam within specified operating conditions
- - Pipe schedule compatibility: Schedule 40
- - No pre-applied thread sealant or included seal
- - Color: Silver
- - Low lead compliance: Compliant for potable water systems
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.00
- Package Height: 0.80
- Package Weight: 2.29
