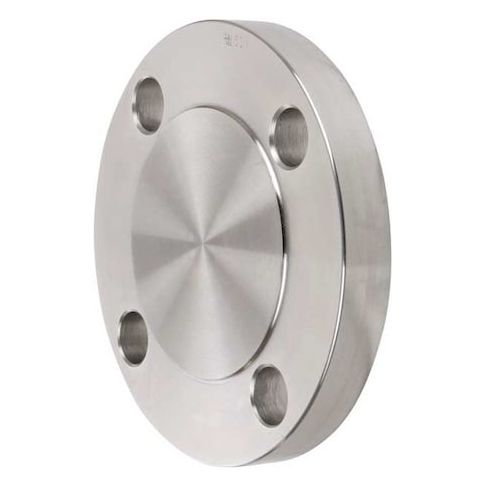

1" Welded SS Blind Flange MPN:4381000020
The ZORO SELECT 4381000020 is a 304 stainless steel blind flange designed for use in piping systems as a blanking or sealing component. Constructed from corrosion-resistant stainless steel, it is suitable for pressure containment and can withstand temperatures ranging from -60°F to 450°F and pressures up to 150 psi. This flange is ideal for applications in industries such as chemical processing, food and beverage, and pharmaceuticals where corrosion resistance and durability are crucial. Its welded connection and raised face sealing surface ensure secure attachment and reliable sealing, making it a reliable choice for a variety of industrial uses.
Top product features:
- Corrosion-resistant 304 stainless steel construction provides durability and resistance to corrosion.
- Constructed with a welded connection and raised face sealing surface for secure and leak-free attachment.
- Rated for use within a temperature range of -60°F to 450°F and a maximum pressure of 150 psi for safe and reliable operation.
Top product applications:
- Pipe and vessel openings
- Blanking or sealing component within a piping system
- Pressure containment applications
The ZORO SELECT - 4381000020 is a 304 stainless steel blind flange intended for use as a blind flange to close off pipe and vessel openings. It serves as a blanking or sealing component within a piping system and is constructed from corrosion-resistant stainless steel suitable for pressure containment. This flange is rated for use within the specified temperature range of -60°F to 450°F and a maximum pressure of 150 psi.
Key Features:
- - Material: 304 Stainless Steel for corrosion resistance and durability.
- - Pressure Class: Class 150, with a maximum rated pressure of 150 psi.
- - Connection Type: Welded connection with a raised face sealing surface.
- - Dimensions: Flange outside diameter of 4 1/4 inches with 4 bolt holes for secure attachment.
- - Nominal Pipe Size: 1 inch, compatible with pipe fittings of the same nominal size.
- - Standards: Manufactured to meet ANSI B16.5 and ASTM A182 standards for flange dimensions and material specifications.
- - Operating Temperature Range: Rated for use within the temperature range of -60°F to 450°F.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.88
- Package Width: 4.88
- Package Height: 0.69
- Package Weight: 3.31
