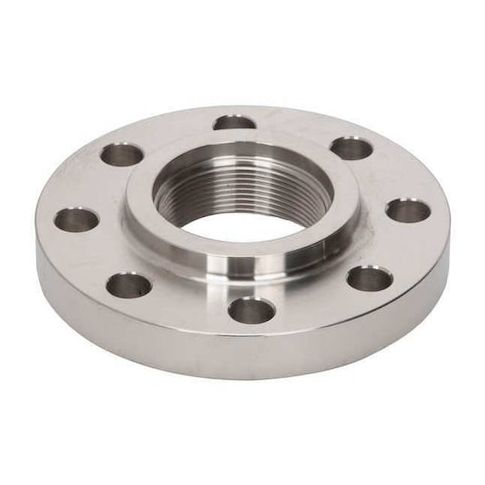

4" FNPT SS Threaded Flange MPN:4381004480
The ZORO SELECT 4381004480 is a reliable and durable forged stainless steel threaded flange designed for use with 4-inch nominal pipe size. Its internal threads enable bolted flange connections without welding, making it ideal for a variety of applications, including HVAC, plumbing, and industrial processes. With a Class 300 pressure rating and maximum operating pressure of 720 psi, this flange can withstand high-pressure systems. Its 304/304L stainless steel construction ensures resistance to corrosion and durability. Perfect for use in harsh environments, this flange is a trusted solution for professionals and industries that require reliable and efficient connections.
Top product features:
- Forged from 304/304L stainless steel for durability and resistance to corrosion.
- Features internal threads that screw onto male pipe threads for bolted flange connections without welding.
- Designed with a raised face connection surface for secure and leak-free connections.
Top product applications:
- High-pressure steam systems
- Industrial process piping
- Pulp and paper mill applications
The ZORO SELECT - 4381004480 is a forged threaded flange made from 304/304L forged stainless steel. It features internal threads that screw onto the male threads of a pipe, enabling bolted flange connections without welding. It is made from 304/304L forged stainless steel. It is designed for use with 4-inch nominal pipe size and incorporates a raised face connection surface.
Key Features:
- - Pipe fitting connection type: FNPT (Female National Pipe Thread)
- - Pressure rating: Class 300, with a maximum operating pressure of 720 psi
- - Maximum steam pressure: 300 psi
- - Flange outside diameter: 10 in
- - Flange thickness: 1 1/4 in
- - Bolt circle diameter: 7 7/8 in
- - Number of bolt holes: 8, each with a diameter of 7/8 in
- - Overall length: 1 7/8 in
- - Conforms to standards ASTM-SA182, ANSI B16.5, and ASME B1.20.1
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 10.40
- Package Height: 5.60
- Package Weight: 24.31
