1/4 in Socket Weld Cap, 304 Stainless Steel, Class 3000, 11/16 in Length MPN:4307004204

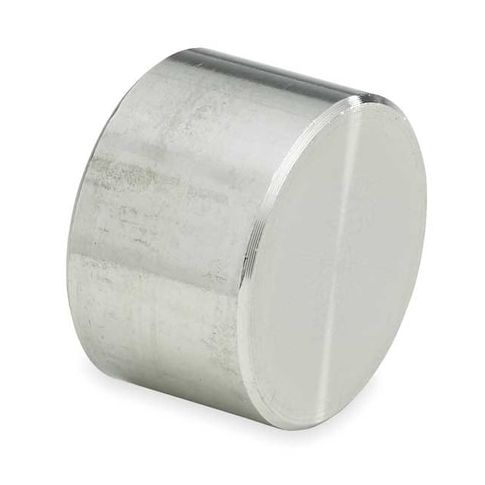

This 1/4 in Socket Weld Cap is a high-quality, 304 stainless steel pipe cap designed to close and seal the end of a pipe. Ideal for use in a variety of industries, including chemical processing, oil and gas, and pharmaceuticals, it provides a secure and leak-free connection. The cap's socket-weld connection type allows for permanent or removable installation, making it a versatile solution for a range of applications. With a maximum pressure rating of 2,570 psi at 100°F and 1,965 psi at 350°F, it meets the demands of high-pressure systems and ensures reliable performance.
Top product features:
- 304 stainless steel construction
- Socket weld connection for permanent or removable installation
- Complies with specified pressure ratings for element
Top product applications:
- Pipe Fittings for Oil and Gas Industry
- Stainless Steel Pipe Caps for Chemical Processing Plants
- High-Pressure Pipe Closures for Aerospace and Defense Applications
The ZORO SELECT - 4307004204 is a stainless steel pipe cap designed to close and seal the end of a pipe. It features socket-weld connection type and complies with specified pressure ratings for element. Made from 304 material and has a maximum pressure rating of 2,570 psi at 100°F and 1,965 psi at 350°F, it is compatible with pipes of 1/4-inch nominal size and has an outside diameter of 7/8 inch. Its overall length measures 11/16 inch.
Key Features:
- - Material: 304 stainless steel
- - Connection Type: Socket weld for permanent or removable installation
- - Pressure Rating: Complies with specified pressure ratings for element
- - Nominal Pipe Size: 1/4 inch
- - Outside Diameter: 7/8 inch
- - Overall Length: 11/16 inch
- - Standards: Conforms to ISO 9001:2008, ASTM A182, and ASME B16.11 specifications
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.90
- Package Width: 0.90
- Package Height: 0.80
- Package Weight: 0.10
