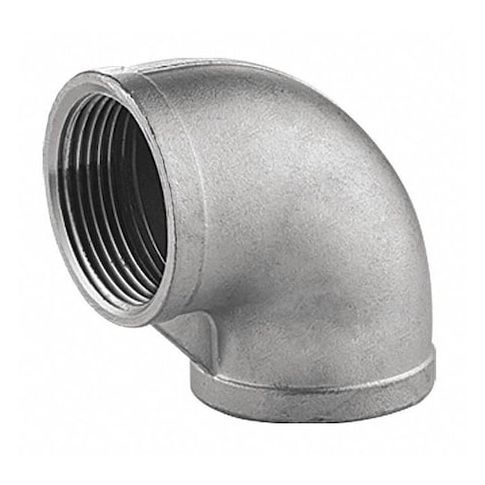

304 Stainless Steel 90° Elbow, 3/4 in FNPT x FNPT, Class 150, Female Threaded MPN:409E111N034

• The ZORO SELECT - 409E111N034 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two 3/4 in pipes, creating a right-angle change in flow direction. Constructed from 304 stainless steel and rated as Class 150, it provides corrosion resistance and pressure capability up to 300 psi for Class 150-rated piping systems with Schedule 40 wall thickness. The fitting features female FNPT threaded connections on both ends with NPT threading of size 14.

  Key Features:

  • - Material: 304 Stainless Steel
  • - Shape: 90 Degree Elbow
  • - Connection Type: Female FNPT x Female FNPT
  • - Nominal Pipe Size: 3/4 inch on both ends
  • - Outside Diameter: 3/4 inch on both ends
  • - Thread Size: 14 threads per inch on both ends, NPT standard
  • - Pressure Rating: Class 150, maximum operating pressure 300 psi
  • - Applications: Suitable for air, natural gas, non-potable water, oil, potable water, and steam
  • - Compliance: Conforms to ASTM A-351 material specifications
  • MSS-SP-114 Class 150 pressure rating
  • ANSI/ASME B1.20.1 thread standards
  • - Does not include pre-applied thread sealant or sealing components
