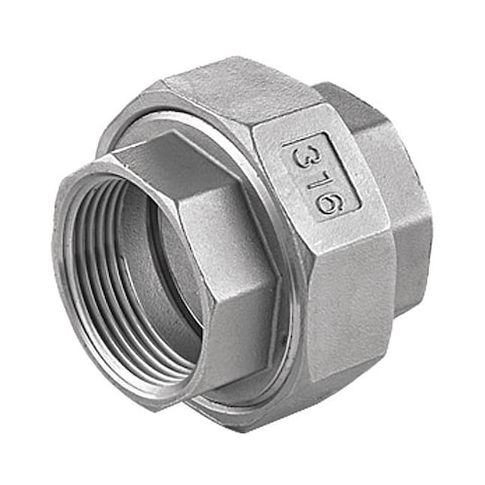

1 in FNPT 316 Stainless Steel Threaded Union, Class 150, 300 psi Max Pressure MPN:600U111N010

• The ZORO SELECT - 600U111N010 is a stainless steel pipe union designed to join two 1-inch female NPT threaded pipe ends without rotating the connected pipes. Constructed from 316 stainless steel, this union is rated for Class 150 pressure. The fitting has a maximum operating pressure of 300 psi and is compliant with low-lead requirements for potable water systems. It has hex wrenching surface

• overall length approximately 47.5 mm
• hex wrench size 52.5 mm. Key Features:

  • - Material: 316 Stainless Steel, corrosion-resistant alloy.
  • - Connection Type: NPT female threads on both sides.
  • - Nominal Pipe Size: 1 inch for both Side A and Side B.
  • - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi and maximum steam pressure of 150 psi.
  • - Pipe Schedule Compatibility: Schedule 40.
  • - Standards: Meets ANSI Standards B1.20.1 for threads and Class 150 pressure rating.
  • - Includes no pre-applied thread sealant or additional sealing components.
  • - Dimensions: Overall length approximately 47.5 mm
  • hex wrench size 52.5 mm.
