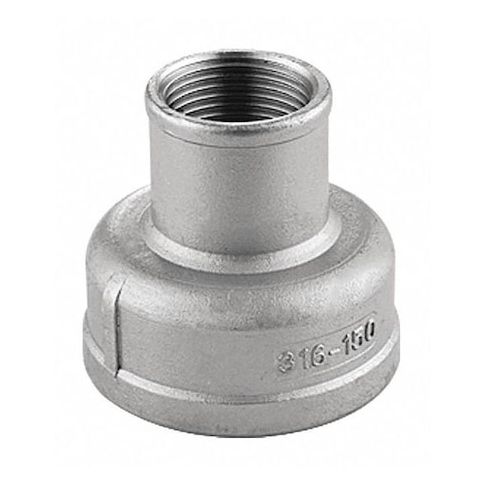

2" x 1-1/2" FNPT 316 SS Reducing Coupling MPN:60RC111N020112

• The ZORO SELECT - 60RC111N020112 is a stainless steel reducing coupling designed to join two pipes of different diameters, specifically 2 inches to 1-1/2 inches nominal pipe sizes. This compact fitting provides a transition between pipe sizes in a piping system and is constructed from 316 Stainless Steel

• corrosion resistance is inherent to the material
• compatibility with media should be verified for the specific application. It features female NPT threaded connections on both ends, adhering to ANSI B1.20.1 standards with a pressure rating: Class 150
• maximum working pressure: 300 psi
• steam pressure rating: 150 psi.

  Key Features:

  • - Material: 316 Stainless Steel
  • - Fitting Type: Reducing Coupling with female NPT connections on both ends
  • - Nominal Pipe Sizes: 2" (Side A) x 1-1/2" (Side B)
  • - Pressure Rating: Class 150
  • maximum working pressure: 300 psi
  • steam pressure rating: 150 psi
  • - Thread Specification: 11 threads per inch on both connections
  • - Pipe Schedule Compatibility: Schedule 40
  • - Overall Length: 65.5 mm
  • - Color: Silver
  • - Includes no pre-applied thread sealant or separate sealing components
  • - Compliant with low lead requirements for potable water systems
