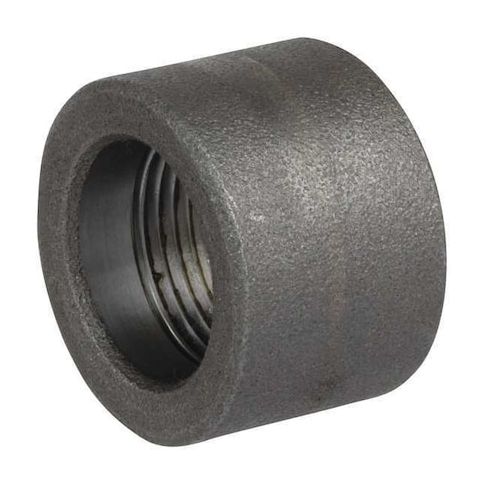

1/4 in FNPT 316 Stainless Steel Half Coupling, Class 3000, 3/4 in OD MPN:4307001502
This 1/4 in FNPT 316 Stainless Steel Half Coupling is a versatile and reliable fitting for various industrial applications. Its female NPT threaded connections ensure secure pipe engagement, while its 316 stainless steel construction provides excellent corrosion resistance and durability. Suitable for use in high-pressure applications, this coupling can withstand 3,000 psi at 100°F and 2,810 psi at 350°F. Its compact design, measuring just 11/16 inch in length, makes it ideal for use in tight spaces. Perfect for use in chemical processing, oil and gas, and pharmaceutical industries, this coupling offers a reliable and long-lasting solution for piping systems.
Top product features:
- Features a female NPT threaded connection on one end for pipe engagement.
- Features a female NPT threaded connection on the other end for pipe engagement.
- Constructed from 316 stainless steel for corrosion resistance.
Top product applications:
- Steam System Maintenance
- Chemical Processing Plants
- Hydroelectric Power Generation
The ZORO SELECT - 4307001502 is a stainless steel half coupling that features female NPT threaded connections on both ends for pipe engagement. Constructed from 316 stainless steel, this fitting has a nominal pipe size of 1/4 inch. Maximum working pressure: 3,000 psi at 100°F
- steam service pressure: 2,810 psi at 350°F. Overall length: 11/16 inch. Threads conform to ASME B1.20.1 standards, and materials meet ASTM A182 requirements with dimensions per ASME B16.11.
Key Features:
- - Material: 316 stainless steel.
- - Features female NPT threaded connections on both ends for pipe engagement.
- - Nominal pipe size: 1/4 inch with corresponding outside diameter of 3/4 inch.
- - Maximum working pressure: 3,000 psi at 100°F
- steam service pressure: 2,810 psi at 350°F.
- - Overall length: 11/16 inch.
- - Standards compliance: Meets ASME B1.20.1 for threads, ASTM A182 for material, and ASME B16.11 for dimensions.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.05
