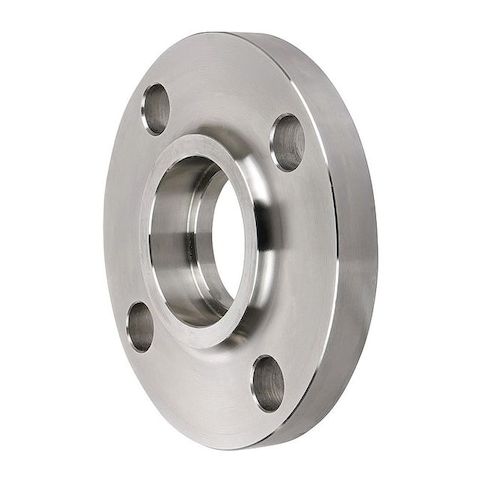

1-1/4" Socket Weld SS Socket Weld Flange Sch 40 MPN:4381004020
Upgrade your piping systems with the ZORO SELECT - 4381004020, a high-performance stainless steel socket weld flange designed for use in high-pressure applications. Constructed from durable 304 stainless steel, it provides exceptional corrosion resistance and strength, making it ideal for use in industries where reliability and durability are crucial. Suitable for use in systems where disassembly is infrequent, this flange is perfect for applications such as chemical processing, oil and gas, and power generation. With its Class 300 rating and 720 psi maximum pressure, it ensures safe and efficient operation in demanding environments.
Top product features:
- Forged 304 stainless steel construction provides corrosion resistance and strength.
- Socket weld design allows for secure pipe connection.
- Class 300 pressure rating enables use in high-pressure piping systems.
Top product applications:
- High-pressure piping systems
- Applications where disassembly is infrequent
- Systems compatible with the socket weld design specifications
The ZORO SELECT - 4381004020 is a stainless steel socket weld flange rated for use within specified pressure ranges and pipe sizes per applicable standards. It features a socket weld design intended for pipe connection. Constructed from forged 304 stainless steel, it provides corrosion resistance and strength. Intended for use in systems compatible with its design specifications, it is typically used in applications where disassembly is infrequent.
Key Features:
- - Material: Forged 304 Stainless Steel
- - Connection Type: Socket Weld with a socket weld design for connecting compatible pipes
- - Pressure Rating: Class 300, rated for a maximum pressure of 720 psi
- - Bolt Circle Diameter: 3 7/8 in
- - Bolt Hole Diameter: 3/4 in
- - Fitting Schedule/Class: Class 300, specified for use in high-pressure piping systems
- - Nominal Pipe Size: 1 1/4 in
- - Outside Diameter: 5-1/4 in
- - Flange Thickness: 3/4 in
- - Standards: Manufactured according to ASTM-SA182 and ANSI B16.5 standards
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.40
- Package Height: 1.10
- Package Weight: 3.60
