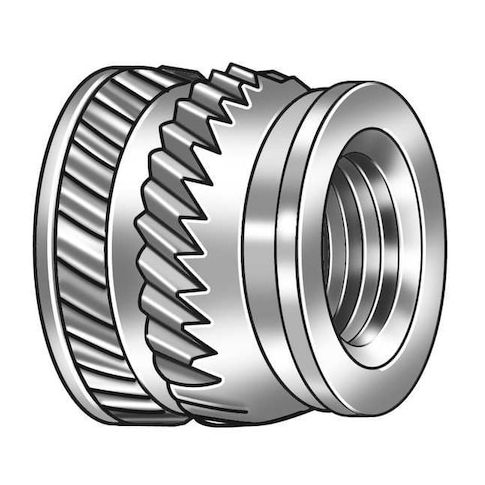

Ultrasonic Insert, 1/4"-28, 19/64 in L, 0.363 in Insert Dia., 0.349 in Tapered End Dia., Brass MPN:TH-428-SV-PK50
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3164305
Ultrasonic Insert, 1/4"-28, 19/64 in L, 0.363 in Insert Dia., 0.349 in Tapered End Dia., Brass
Elevate your thermoplastic applications with the GoVets Select Ultrasonic Insert. This heat-set insert provides exceptional pull-out resistance, ensuring a secure fit in a variety of thermoplastic materials. With a tapered end diameter of 0.349 in and an insert diameter of 3/8 in, this insert is ideal for applications where a flush flange style is required. Suitable for use in right-hand threads, the 1/4 in.-28 thread size provides a secure fit in a range of industries, including automotive, aerospace, and consumer products. Its compact size and plain finish make it an excellent choice for a variety of applications, from small components to larger assemblies.
Top product features:
- Pull-Out Resistance
- Tapered End Diameter of 0.349 in for Easy Insertion
- Flush Flange Style for Reduced Stress on Surrounding Material
Top product applications:
- Threaded inserts for thermoplastic materials
- Automotive applications requiring high pull-out resistance
- General-purpose fastening in industrial equipment
Heat-Set Insert, Insert Type Heat-Set Insert, System of Measurement Inch, Insert Diameter 3/8 in, Overall Length 19/64 in, Thread Size 1/4 In.-28, Thread Direction Right Hand, Thread Type Fine, Material Brass, Shank Type Tapered, Tapered End Diameter 0.349 in, Flange Style Flush, Number of Vanes 1, Compatible Material Thermoplastic, Drill Bit Size 0.349 in, Minimum Material Thickness 3/16 in, Maximum Hole Diameter 0.363 in, Features Pull-Out Resistance, Finish Plain
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.25
Product info last updated on February 14, 2026 5:58pm UTC
Category: Threaded Inserts
