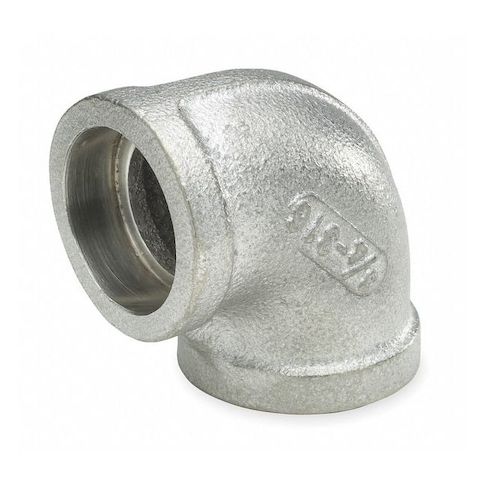

1-1/2" Socket Weld SS 90 Degree Elbow MPN:4307004318
The ZORO SELECT 4307004318 1-1/2in Socket Weld SS 90 Degree Elbow is a reliable and durable stainless steel pipe fitting designed to connect two pipes at a 90-degree angle, changing flow direction while maintaining high pressure resistance. Constructed from 304 stainless steel, it features socket weld female connections on both ends, suitable for applications in chemical, food, and pharmaceutical processing, as well as high-temperature steam systems. Its high-pressure rating and corrosion-resistant material ensure long-lasting performance in demanding environments, making it an ideal choice for industries requiring precise pipe connections and reliable flow control.
Top product features:
- 304 stainless steel construction
- Socket weld female connections on both ends
- Maximum internal pressure of 3000 psi
Top product applications:
- Steam distribution systems
- Chemical processing plants
- Power generation facilities
The ZORO SELECT - 4307004318 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes at a right angle to change flow direction. Constructed from 304 stainless steel, it features socket weld female connections on both ends, each sized at 1 1/2 inches nominal pipe size. Maximum pressure: 3000 psi
- Maximum steam pressure: 2810 psi at 350°F. Material: 304 stainless steel. The fitting complies with standards ISO 9001:2008, ASTM A182, and ASME B16.11.
Key Features:
- - Material: 304 stainless steel.
- - Connection Type: Socket weld with female gender on both ends.
- - Nominal Pipe Size: 1 1/2 inches for both connections.
- - Pressure Rating: Class 3000, with maximum internal pressure of 3000 psi.
- - Maximum steam pressure: 2810 psi at 350°F.
- - Overall Length: 3 1/2 inches.
- - Outside Diameter at connection end: 2 5/16 inches.
- - Compliance: ISO 9001:2008, ASTM A182, ASME B16.11 standards.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 6.30
- Package Height: 6.70
- Package Weight: 11.48
