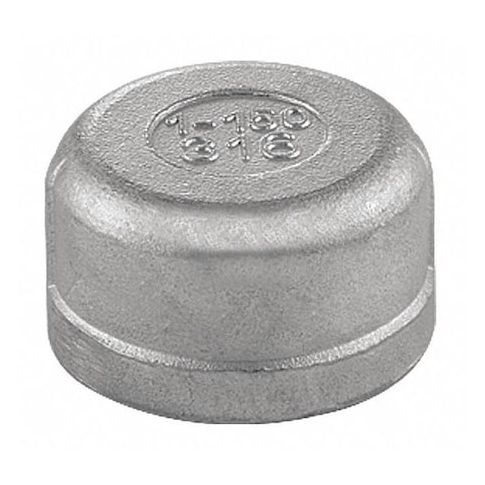

4" FNPT 316 SS Threaded Cap MPN:60RDC111N040

• The ZORO SELECT - 60RDC111N040 is a stainless steel pipe cap intended for end-termination in Class 150 piping systems

• rated for operation up to 300 psi and a temperature range of -20 to 350 °F. It is made from 316L stainless steel and features a female national pipe thread (FNPT) connection. This cap has a nominal pipe size of 4 inches and is compatible with Schedule 40 piping. This cap is intended for end-termination, pressure testing, and future line extensions within rated limits (up to 300 psi and -20 to 350 °F).

  Key Features:

  • - Material: 316L stainless steel, offering resistance to corrosion.
  • - Connection type: Female National Pipe Thread (FNPT) with an 8 TPI thread size on the fitting end.
  • - Nominal pipe size: 4 inches with an outside diameter of 4 inches.
  • - Pressure rating: Class 150 with a maximum operating pressure of 300 psi and maximum steam pressure of 150 psi.
  • - Temperature range: Operates from -20 Degrees to 350 Degrees Fahrenheit.
  • - Overall length: 51.9 mm.
  • - Does not include pre-applied thread sealant or sealing components.
  • - Meets ANSI B1.20.1 standards.
