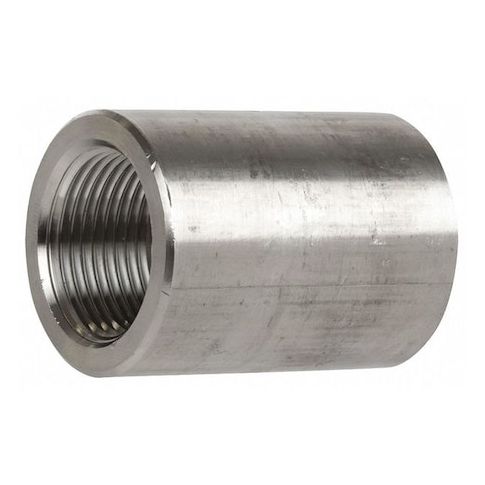

304 Stainless Steel Coupling, Female NPT, 1/4 in, Class 3000 MPN:2UA49
Free Shipping
In Stock
This 304 stainless steel coupling is designed for connecting 1/4-inch pipes or tubes in-line, featuring female NPT connections on both ends with 18 threads per inch. Ideal for high-pressure applications, it can withstand up to 3000 psi at 100°F and 2500 psi at 350°F. Its durable construction meets industry standards, making it suitable for use in various industries, including chemical processing, oil and gas, and pharmaceutical. The coupling's compact size and lightweight design make it easy to install and transport, making it a reliable choice for a wide range of applications, including piping systems and equipment connections.
Top product features:
- Material: 304 Stainless Steel
- Pipe Size: 1/4 inch nominal diameter on both ends
- Thread Pitch: 18 threads per inch on both connections (18 TPI)
Top product applications:
- Steam System
- Pneumatic System
- Industrial Process Control
The ZORO SELECT - 2UA49 is a 304 stainless steel coupling designed to connect two 1/4-inch pipes or tubes in-line. It features female NPT (National Pipe Thread) connections on both ends with 18 threads per inch (18 TPI). Maximum pressure rating: 3000 psi at 100°F
- Steam pressure rating: 2500 psi at 350°F
- Pressure class: Class 3000 (per industry standards). This coupling’s material and design specifications conform to ASTM-A-182, ANSI/ASME B1.20.1 thread standards, and meet ASME B16.11 requirements.
Key Features:
- - Material: 304 Stainless Steel
- - Pipe Size: 1/4 inch nominal diameter on both ends
- - Connection Type: Female NPT threaded connections on Side A and Side B
- - Thread Pitch: 18 threads per inch on both connections (18 TPI)
- - Maximum pressure rating: 3000 psi at 100°F
- - Steam pressure rating: 2500 psi at 350°F
- - Standards: ASTM-A-182 for material, ANSI/ASME B1.20.1 for threads, ASME B16.11 compliance
- - Does not include pre-applied thread sealant or seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.75
- Package Width: 0.75
- Package Height: 1.38
- Package Weight: 0.09
