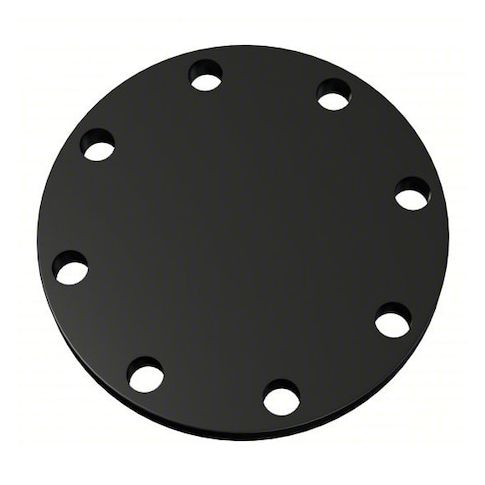

Blind Flange, Carbon Steel, 8 in Nominal, 13 1/2 in Outside Diameter, 150 lb, Flat Face MPN:FL1FB8
Free Shipping
In Stock
The GoVets Select Blind Flange is a reliable solution for closing off pipe, valve, or pressure vessel openings. Suitable for gas, non-potable water, and oil applications, this 8-inch nominal pipe size flange provides a sealed termination point when installed with a gasket and mating flange. Constructed from carbon steel and conforming to ASME B16.5 and ASTM A/SA-105 standards, it features a flat face connection surface for easy sealing. With a maximum operating pressure of 150 psi, this flange ensures safe and efficient operation in a variety of industrial settings, making it an ideal choice for applications requiring isolation and maintenance.
Top product features:
- Provides a sealed termination point when installed with a gasket and mating flange, enabling isolation and maintenance per standard practice.
- Features a flat face connection surface for sealing against a mating flange with a gasket.
- Rated for a maximum operating pressure of 150 psi.
Top product applications:
- gas
- non-potable water
- oil
The ZORO SELECT - FL1FB8 is an 8-inch nominal pipe size blind flange designed to close off the end of a pipe, valve, or pressure vessel opening. It provides a sealed termination point when installed with a gasket and mating flange, enabling isolation and maintenance per standard practice. This flange is suitable for applications involving gas, non-potable water, and oil. The fitting is rated for a maximum operating pressure of 150 psi and features a flat face connection surface for sealing against a mating flange with a gasket. It is constructed from carbon steel and conforms to ASME B16.5 and ASTM A/SA-105 standards.
Key Features:
- - Nominal Pipe Size: 8 in
- - Flange Outside Diameter: 13 1/2 in
- - Number of Bolt Holes: 8
- - Pressure Class: 150
- - Connection Type: Blind flange
- - Connection Surface: Flat Face
- - Material: Carbon Steel
- - Standards: ASME B16.5
- ASTM A/SA-105
- - Applications: gas, non-potable water, and oil
- - Maximum Operating Pressure: 150 psi
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.50
- Package Width: 13.50
- Package Height: 1.00
- Package Weight: 45.50
