3/16" Barb White Nylon Ball Cone Spring Check Valve MPN:WN CHK 695-3B3B-B
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3087025

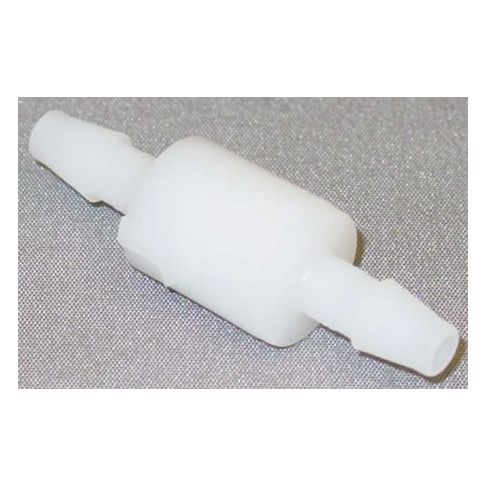

3/16" Barb White Nylon Ball Cone Spring Check Valve
This 3/16in Barb White Nylon Ball Cone Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Ideal for use in water, air, and steam systems, it ensures one-way flow while preventing backflow and pressure loss. The nylon body and stainless steel spring provide durability and resistance to corrosion, while the Buna-N seal ensures a tight seal. Suitable for horizontal and vertical mounting, this check valve is perfect for use in industrial, commercial, and residential settings, including water treatment, HVAC, and plumbing systems. Its compact size and low cracking pressure make it an excellent choice for a wide range of applications.
Top product features:
- The valve has a single flow design that allows for full flow through the check valve.
- The mechanism and body design is an inline ball cone configuration.
- The valve is equipped with a stainless steel spring that provides a cracking pressure of 1 psi.
Top product applications:
- Water Supply Systems
- Hydraulic Systems
- Steam-Free Applications
Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Nylon, Pipe or Tube Size 3/16 in, Connection Type Barb x Barb, Cracking Pressure 1 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 140 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 125 psi, Max. Steam Pressure - Valves Not Rated, Seat Material Nylon, Spring Material Stainless Steel, Full Flow - Valves Yes
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.04
Product info last updated on March 10, 2026 3:37pm UTC
Category: Pipes, Valves and Fittings
