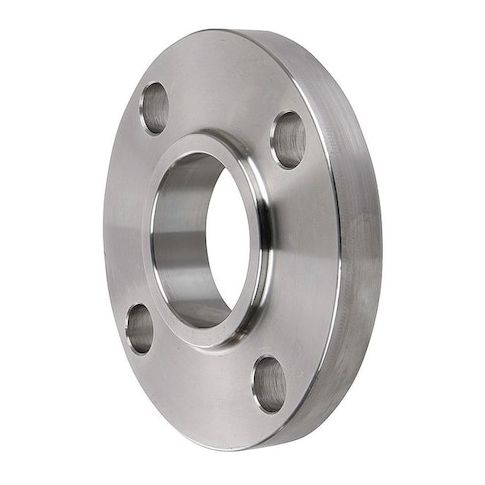

2" Slip On SS Slip-On Flange MPN:4381003840
The ZORO SELECT - 4381003840 slip-on flange is a high-quality, corrosion-resistant solution for various industrial applications. Made from forged 304/304L stainless steel, it offers durability and resistance to corrosion. Suitable for use in applications with a maximum working pressure of 720 psi, this flange is ideal for use in chemical processing, oil and gas, and power generation industries. Its slip-on design allows for easy installation and welding, making it a convenient choice for plumbers and engineers. With its high-pressure rating and corrosion-resistant material, this flange provides a reliable and long-lasting solution for demanding applications.
Top product features:
- Forged 304/304L stainless steel construction offers corrosion resistance and durability.
- The slip-on flange is designed for slip-on installation according to standard practices.
- Rated for a maximum working pressure of 720 psi, the flange is suitable for applications within this pressure range.
Top product applications:
- Chemical Processing
- Oil and Gas Industry
- Power Generation
The ZORO SELECT - 4381003840 is a slip-on flange made of stainless steel, specifically forged 304/304L alloy. It features a bolt circle diameter of 5 inches, a bolt hole diameter of 3/4 inch, and an outside diameter of 6-1/2 inches. The flange has a thickness of 7/8 inch and fits a nominal pipe size of 2 inches. Rated for use within the specified pressure ranges of up to 720 psi, it is suitable for applications within this pressure range. It is compatible with standard installation procedures involving slip-on connection and welding as specified.
**Key Features:**
- - Material Grade: Forged 304/304L stainless steel, offering corrosion resistance and durability.
- - Pressure Rating: Rated for a maximum working pressure of 720 psi
- suitable for applications within this pressure range.
- - Connection Type: Slip On flange, designed for slip-on installation according to standard practices.
- - Standards: ASTM-SA182, ANSI B16.5, manufactured in accordance with applicable standards and specifications.
- - Bolt Circle Diameter: 5 inches with 8 bolt holes of 3/4 inch diameter.
- - Flange Outside Diameter: 6-1/2 inches.
- - Flange Thickness: 7/8 inch.
- - Overall Length: 1 5/16 inches.
- - Maximum Operating Pressure: 720 psi.
- - Applicable Pressure Class: Class 300.
- - Connection Surface: Raised Face.
- - Fittings Sub-Category: Flanges.
- - Nominal Pipe Size: 2 inches.
- - Number of Bolt Holes: 8.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.60
- Package Width: 6.60
- Package Height: 1.30
- Package Weight: 6.60
